EZ17e

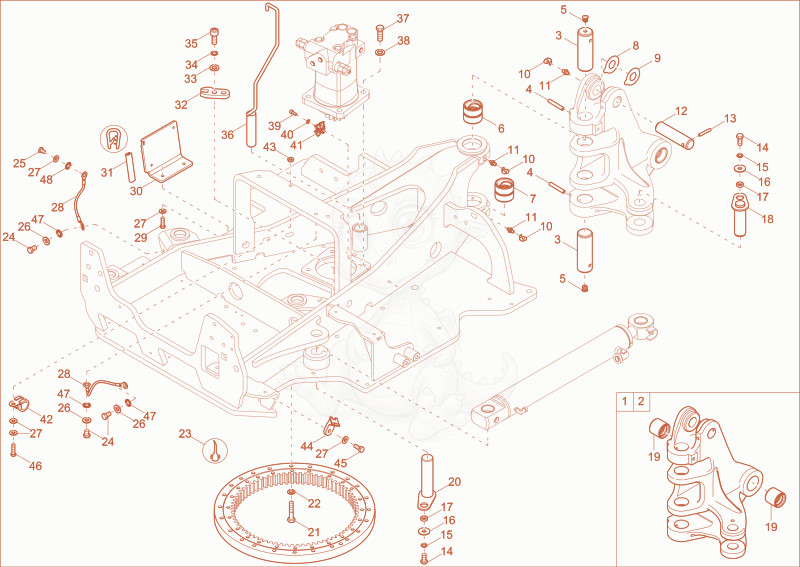

EZ17E CHASSIS Diagram
- 11000315847Not stockedswivel console×1
- 21000315848Not stockedswivel console×1
- pin DM=40x120 - 1000267695×2
- cotter pin - 1000085653×2
- 51000068993Not stockedplug×2
- 61000152780Not stockedsteel bushing×1
- 71000019750Not stockedsteel bushing×1
- shim 0,5mm - 1000153542×1
- shim 1,0mm - 1000153541×1
- 101000015480Not stockedcap grease nipple×3
- 111000015475Not stockedgrease nipple×3
- PIN - 1000267694×1
- cotter pin 8x80 - 1000082715×1
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
- 151000015438Not stockedlock washer×2
- Washer 10,5 St A2C - 1000092303×2
- washer 18/12x5 - 1000151025×2
- pin DM=30x100 - 1000267693×1
- steel bushing 45/36x40 - 1000152791×2
- pin DM=30x130 - 1000283071×1
- 6-piont screw M12x50 - 1000085438×17
- 221000426231Not stockedlock washer×17
- seal - 1000336176×1.5
- 241000013009Not stockedhex screw×3
- hex screw M8x12-8.8 A2C DIN933 - 1000085389×1
- washer M10-DIN134 - 1000094974×3
- 271000015448Not stockedwasher×6
- cable 180MM - 1000412089×2
- 291000015343Not stockedhex screw×2
- bracket - 1000427867×1
- edge protection - 1000151037×0.08
- twist lock - 1000283075×1
- 331000049219Not stockedwasher×2
- lock washer - 1000082609×2
- allen screw M 12x30-10.9DACRO500DIN912 - 1000085510×2
- twist lock pin - 1000283048×1
- 371000015381Not stockedhex screw×4
- 381000015450Not stockednorthlock disc×4
- allen screw M6x25-8.8 A2C DIN912 - 1000085457×1
- washer M6,4-DIN134 - 1000094966×1
- sockets - 1000291567×1
- hose clamp RSGU 1 23/20 - 1000083248×1
- 431000021806Not stockedhexagon nut×1
- 441000378385Not stockedsockets×1
- 451000013008Not stockedhex screw×1
- 6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×1
- Lock washer DIN6797 A10,5 - 1000095354×3
- washer A8,4 A2C - 1000095355×1
