EZ17e

EZ17E electric motor Diagram

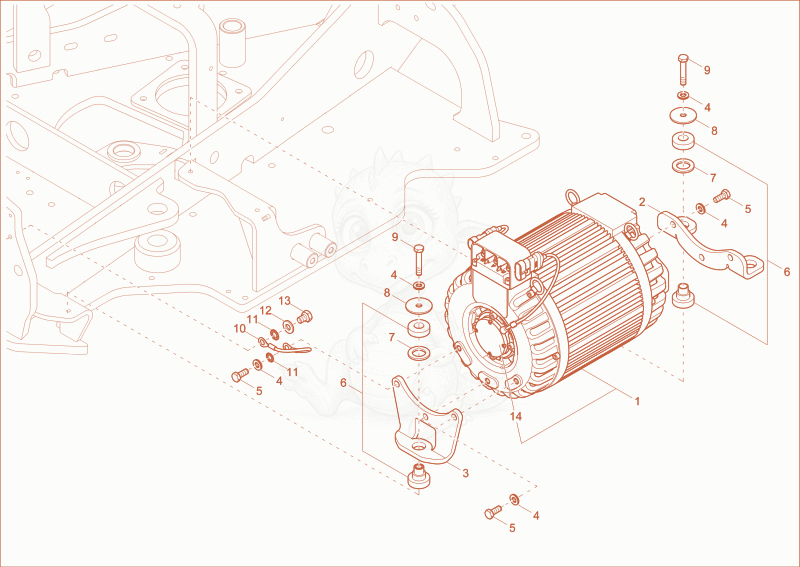

Exploded parts diagram of the electric motor of a Wacker Neuson EZ17E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000428855Not stocked
    engine×1
  • 21000404935Not stocked
    mounting bracket×1
  • 31000404936Not stocked
    mounting bracket×1
  • 41000357678Not stocked
    northlock disc×9
  • 51000013008Not stocked
    hex screw×6
  • 61000441762Not stocked
    engine lodging×3
  • 71000428722Not stocked
    washer×3
  • 81000404737Not stocked
    washer×3
  • 91000015344Not stocked
    hex screw×3
  • 101000412089Price
    cable 180MM - 1000412089×1
  • 111000095355Price
    washer A8,4 A2C - 1000095355×2
  • 121000015448Not stocked
    washer×1
  • 131000085389Price
    hex screw M8x12-8.8 A2C DIN933 - 1000085389×1
  • 141000483404Price
    sensor - 1000483404×1
