EZ10e

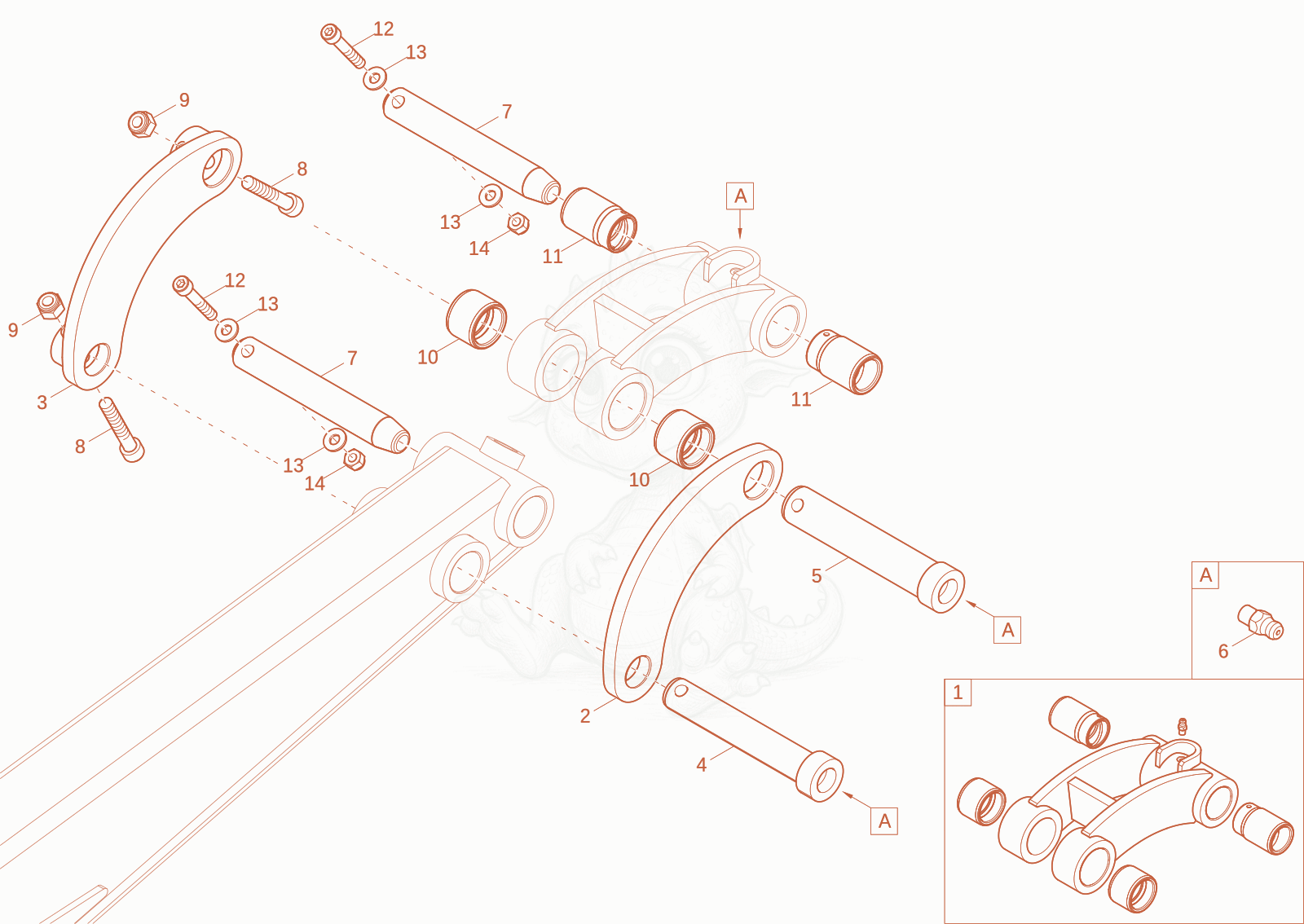

EZ10E support Diagram

Exploded parts diagram of the support of a Wacker Neuson EZ10E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000165538Price
    Pre Assembledconnectinglink 1000165538×1
  • 21000149511Price
    PIVOT PLATE - 1000149511×1
  • 31000149512Price
    Pivotplate 1000149512×1
  • 41000150652Price
    PIN - 1000150652×1
  • 51000150635Price
    PIN - 1000150635×1
  • 61000015475Not stocked
    grease nipple×3
  • 71000150636Price
    PIN - 1000150636×2
  • 81000085505Price
    cheese head screw - 1000085505×2
  • 91000357535Not stocked
    hexagon nut×2
  • 101000546376Not stocked
    steel bushing×2
  • 111000546876Not stocked
    steel bushing×2
  • 121000048172Not stocked
    cheese head screw×2
  • 131000015448Not stocked
    washer×4
  • 141000357534Not stocked
    hexagon nut×2
