EZ10e

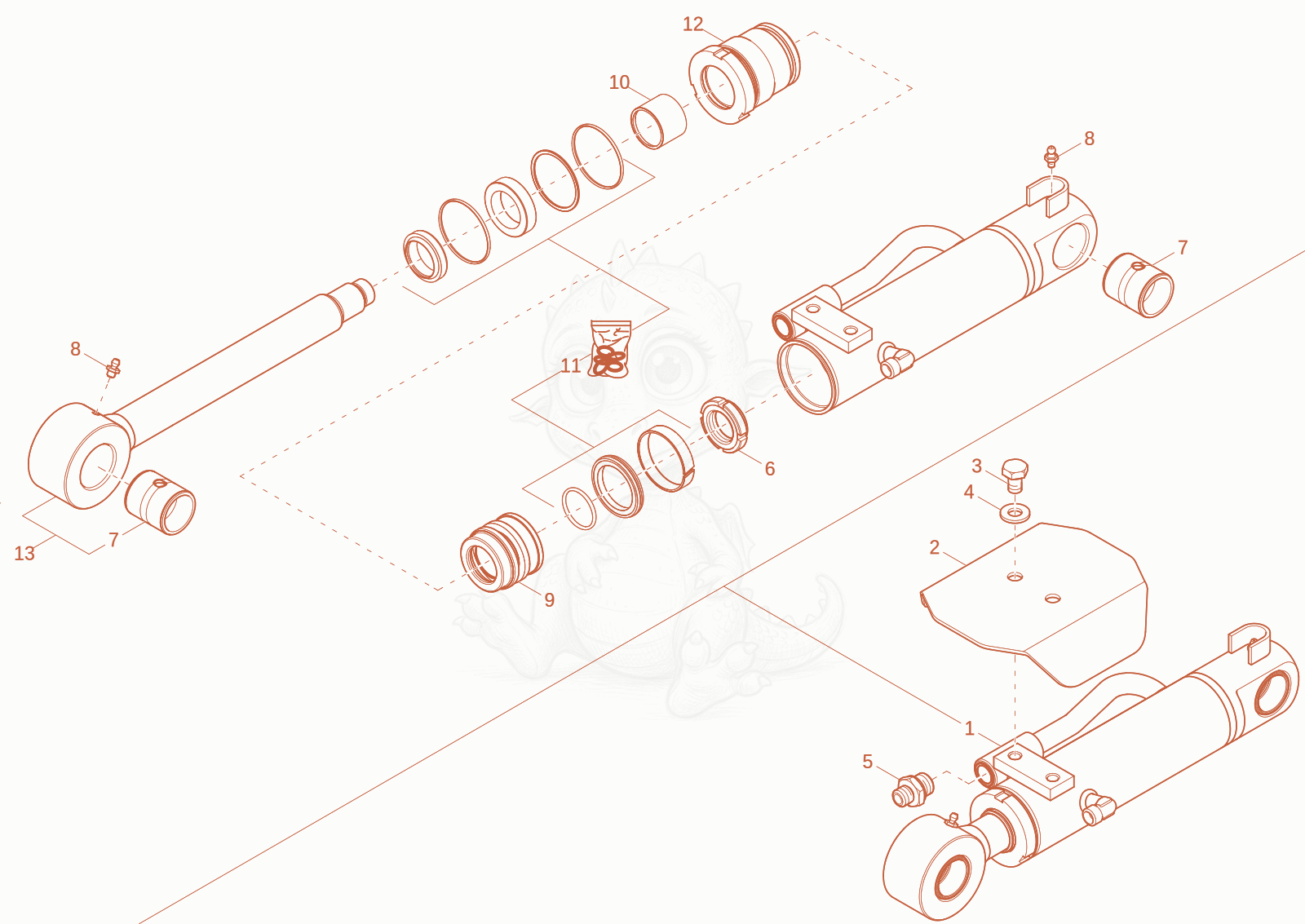

EZ10E blade cylinder Diagram

Exploded parts diagram of the blade cylinder of a Wacker Neuson EZ10E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000420058Not stocked
    blade cylinder×1
  • 21000572414Not stocked
    cover×1
  • 31000013009Not stocked
    hex screw×2
  • 41000094974Price
    washer M10-DIN134 - 1000094974×2
  • 51000015489Not stocked
    screw joint×1
  • 61000399498Price
    Nut - 1000399498×1
  • 71000403740Price
    Bushing - 1000403740×2
  • 81000015475Not stocked
    grease nipple×2
  • 91000403742Price
    Piston - 1000403742×1
  • 101000403747Not stocked
    slide bearing×1
  • 111000403709Not stocked
    seal kit×1
  • 121000403744Not stocked
    guide bushing×1
  • 131000159621Not stocked
    piston rod×1
