EW100

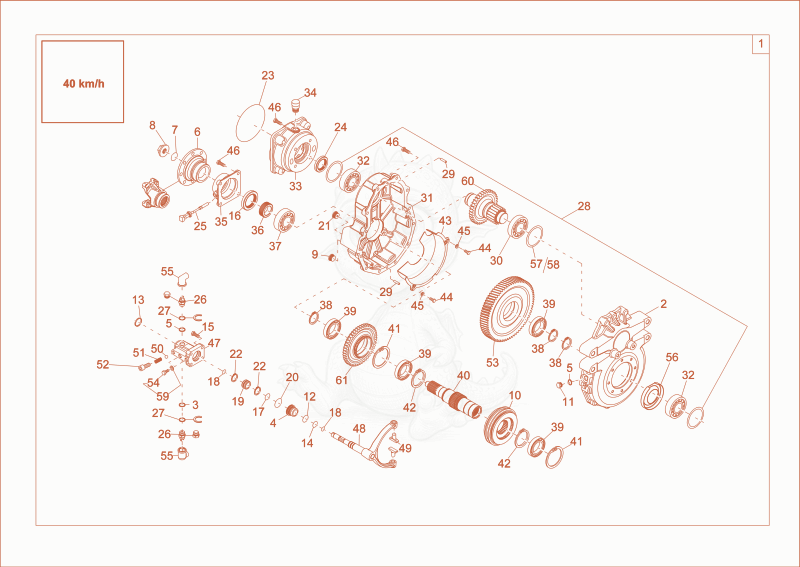

EW100 distributor gear-box Diagram
- 11000337808Not stockedgear box×1
- HOUSING - 1000312474×1
- seal ring - 1000170106×1
- BUSHING - 1000311430×1
- WASHER - 1000170133×1
- Flange - 1000170139×1
- O-ring - 1000058503×1
- Nut - 1000150352×1
- Magnetfilter plug - 1000088766×1
- 101000311474Not stockedshift sleeve×1
- SCREW - 1000170117×1
- o-ring - 1000087946×1
- 131000309818Not stockedseal ring×1
- O-ring - 1000311472×1
- 151000311473Not stockedscrew×4
- 161000311476Not stockedseal ring×1
- O-ring - 1000126130×1
- O-ring - 1000124282×1
- PISTON - 1000311222×1
- O-ring - 1000311429×1
- PLUG - 1000143405×1
- 221000311427Not stockedlock ring×2
- 231000170088Not stockedo-ring×1
- seal ring - 1000170103×1
- Sensor - 1000311475×1
- SWITCH - 1000311223×2
- 271000312610Not stockedfitting disc×2
- 281000312475Not stockedfitting disc×1
- pin - 1000170109×2
- Bearing - 1000170107×1
- Housing - 1000312481×1
- ball bearing - 1000084962×2
- Cover 1000170090×1
- Breather - 1000312483×1
- Cover - 1000312484×1
- Gear - 1000312485×1
- 371000317192Not stockedball bearing×1
- Lock ring - 1000143412×3
- Taper Roller Bearing - 1000088698×4
- 401000312487Not stockedgear assy shaft×1
- 411000312489Not stockedlock ring×2
- lock ring - 1000106951×2
- PLATE - 1000170166×1
- HEX SCREW - 1000170118×2
- WASHER - 1000170134×2
- 461000311473Not stockedscrew×12
- cylinder - 1000312492×1
- 481000312496Not stockedshift rod×1
- 491000312498Not stockedslide piece×2
- BALL - 1000102612×1
- spring - 1000109829×1
- 521000312499Not stockedthread pin×1
- 531000312990Not stockedgear×1
- PLUG - 1000312505×2
- 551000312506Not stockedprotecting cap×2
- protection plate - 1000143413×1
- 571000312507Not stockedfitting disc×1
- 581000312509Not stockedfitting disc×1
- screw - 1000106348×2
- 601000170113Not stockeddrive shaft×1
- 611000312989Not stockedgear×1
