EW100

EW100 lift arm Diagram

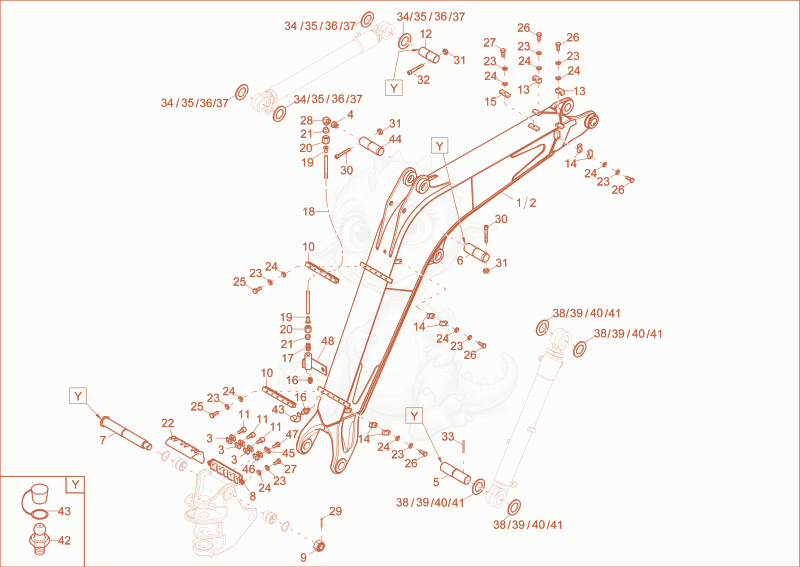

Exploded parts diagram of the lift arm of a Wacker Neuson EW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000319153Not stocked
    lift arm×1
  • 21000321835Not stocked
    lift arm×1
  • 31000015626Not stocked
    clamp body×3
  • 41000074434Price
    extension - 1000074434×1
  • 51000115085Price
    Pin 1000115085×1
  • 61000115089Price
    Pin 1000115089×1
  • 71000147504Price
    Pin 1000147504×1
  • 81000415293Not stocked
    clamp bar×1
  • 91000015419Not stocked
    crown nut×1
  • 101000115065Price
    pipe clamp - 1000115065×2
  • 111000085457Price
    allen screw M6x25-8.8 A2C DIN912 - 1000085457×3
  • 121000115086Price
    Pin 1000115086×1
  • 131000163041Price
    pipe clamp - 1000163041×2
  • 141000115068Price
    pipe clamp - 1000115068×6
  • 151000115066Price
    pipe clamp - 1000115066×1
  • 161000082805Price
    grease nipple M10x1 - 1000082805×2
  • 171000083092Price
    GE06LLM10X1A3CX - 1000083092×1
  • 181000304322Price
    lubrication line - 1000304322×1.8
  • 191000152581Price
    plug sleeve - 1000152581×2
  • 201000015536Not stocked
    union nut×2
  • 211000015537Price
    D6LL - 1000015537×2
  • 221000415291Not stocked
    clamp bar×1
  • 231000015438Not stocked
    lock washer×14
  • 241000015432Price
    washer 10,5 A2C DIN125 - 1000015432×14
  • 251000085414Price
    hex screw - 1000085414×6
  • 261000085415Price
    hex screw 10x60-8.8-A2C-DIN931 - 1000085415×5
  • 271000085412Price
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×3
  • 281000074430Price
    angle screw joint - 1000074430×1
  • 291000280921Price
    COTTERPIN - 1000280921×1
  • 301000131405Price
    cheese head screw - 1000131405×2
  • 311000015408Price
    nut M10-8 A2C-DIN985 - 1000015408×3
  • 321000085471Price
    cheese head screw - 1000085471×1
  • 331000049793Not stocked
    cotter pin×1
  • 341000146842Price
    shim - 1000146842×10
  • 351000146846Price
    shim - 1000146846×10
  • 361000147611Price
    shim - 1000147611×10
  • 371000147529Price
    shim - 1000147529×10
  • 381000146843Not stocked
    shim×10
  • 391000146847Not stocked
    shim×10
  • 401000147612Price
    shim - 1000147612×10
  • 411000147530Price
    shim - 1000147530×1
  • 421000015476Not stocked
    grease nipple×5
  • 431000015480Not stocked
    cap grease nipple×6
  • 441000115088Price
    Pin 1000115088×1
  • 451000022379Not stocked
    cover plate×1
  • 461000083285Price
    clamp Body - 1000083285×1
  • 471000085392Price
    hex screw M8x40-8.8 A2C DIN933 - 1000085392×1
  • 481000312350Not stocked
    lubrication line×1
