EW100

EW100 LUFFING BOOM CYLINDER OPERATION Diagram

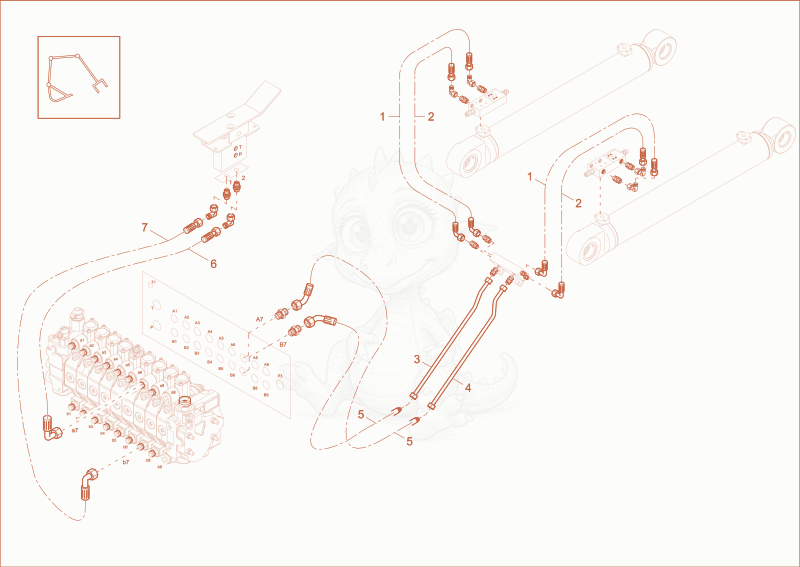

Exploded parts diagram of the LUFFING BOOM CYLINDER OPERATION of a Wacker Neuson EW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000144425Not stocked
    Hose×2
  • 21000144424Not stocked
    Hose×2
  • 31000142071Price
    pipe line - 1000142071×1
  • 41000142072Price
    pipe line - 1000142072×1
  • 51000305727Not stocked
    Hose×2
  • 61000305868Not stocked
    Hose×1
  • 71000076347Not stocked
    Hose×1
