ET35

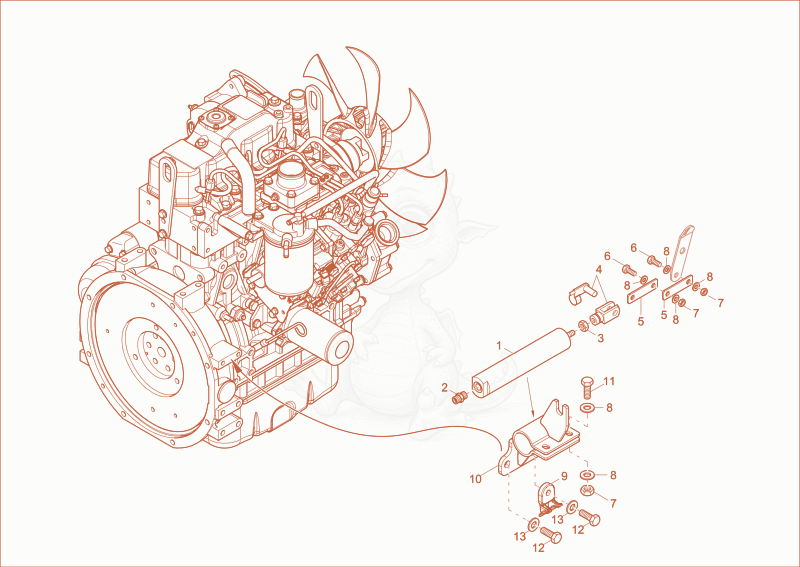

ET35 SPEED CONTROL Diagram

Exploded parts diagram of the SPEED CONTROL of a Wacker Neuson ET35, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000405956Price
    cylinder speed control - 1000405956×1
  • 21000083027Price
    GE08LM10X1EDOMDA3C - 1000083027×1
  • 31000015405Not stocked
    hexagon nut×1
  • 41000123993Price
    fork head - 1000123993×1
  • 51000153422Price
    plate - 1000153422×2
  • 61000085382Price
    HEX SCREW - 1000085382×2
  • 71000085588Price
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
  • 81000015430Not stocked
    u-washer×8
  • 91000378385Not stocked
    sockets×1
  • 101000177858Price
    BRACKET - 1000177858×1
  • 111000085384Price
    6-Point screw M6x25-8.8 A2C-DIN933 - 1000085384×2
  • 121000013008Not stocked
    hex screw×2
  • 131000015448Not stocked
    washer×2
