ET35

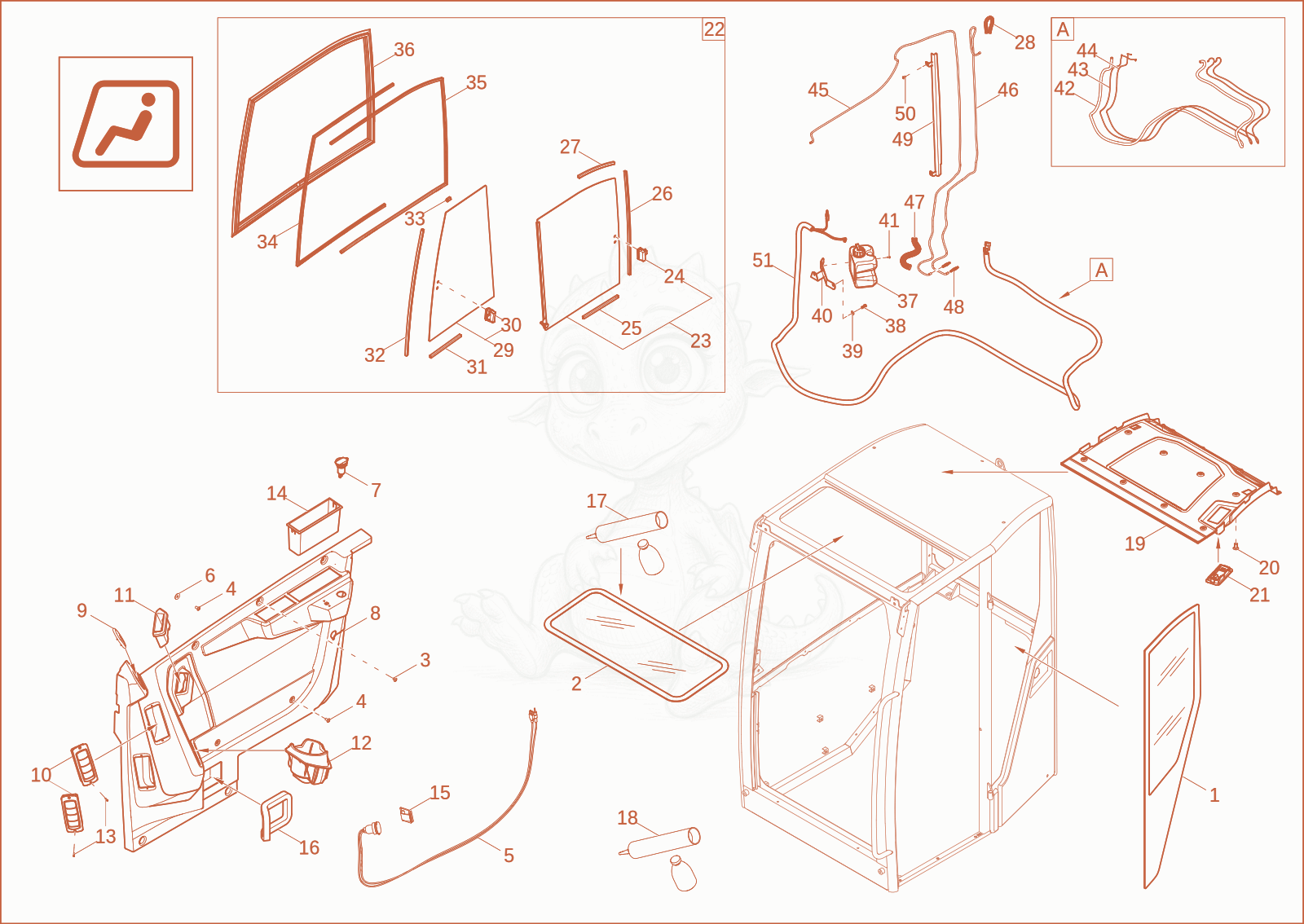

ET35 CABIN FRAME (OPTION) Diagram
- 11000367413Not stockedside window×1
- 21000548531Not stockedroof glass×1
- 31000550817Not stockedscrew×3
- 41000550819Not stockedscrew×5
- 51000427277Not stockedcable×1
- washer - 1000233504×1
- Power socket 12V Cabin - 1000485001×1
- 81000549002Not stockedside trim×1
- 91000374033Not stockedround nozzle×1
- 101000313229Not stockednozzle×2
- 111000372954Not stockedbracket×1
- 121000372953Not stockedbottle holder×1
- 131000323174Not stockedscrew×4
- board - 1000298216×1
- CABLE CLIP - 1000124830×3
- seal - 1000377078×1
- GLUE KT - 1000243475×1
- 181000403567Not stockedglue kt×1
- 191000548434Not stockedroof trim×1
- 201000550818Not stockedscrew×12
- LIGHT - 1000410798×1
- 221000535031Not stockedslide window×1
- 231000535033Not stockedslide window×1
- Handle - 1000487184×1
- 251000550044Not stockedseal×1
- 261000550045Not stockedseal×1
- 271000550046Not stockedseal×1
- cable hose - 1000097882×0.2
- 291000535032Not stockedslide window×1
- Handle - 1000487185×1
- 311000550047Not stockedseal×1
- 321000550048Not stockedseal×1
- 331000550049Not stockedseal×1
- 341000550050Not stockedseal×1
- 351000550051Not stockedseal×1
- 361000550061Not stockedframe×1
- wash tank 2 pumps - 1000458509×1
- allen screw M6x20-8.8 A2C-DIN912 - 1000085456×2
- washer A 6,4 St A2C DIN9021 - 1000095343×2
- 401000548457Not stockedbracket×1
- screw - 1000185907×2
- 421000549598Not stockedcable hose×4.5
- water hose - 1000279943×4.7
- water hose - 1000279943×4.6
- water hose - 1000116965×2.7
- water hose - 1000116965×2.1
- insulating hose - 1000248706×0.3
- NON RETURN VALVE WINDSCREEN WASHER - 1000279944×2
- 491000549371Not stockedcover×1
- 501000326519Not stockedflat head screw×2
- 511000564531Not stockedcable×1
