ET08

ET08 driving signal (Option) SPC Diagram

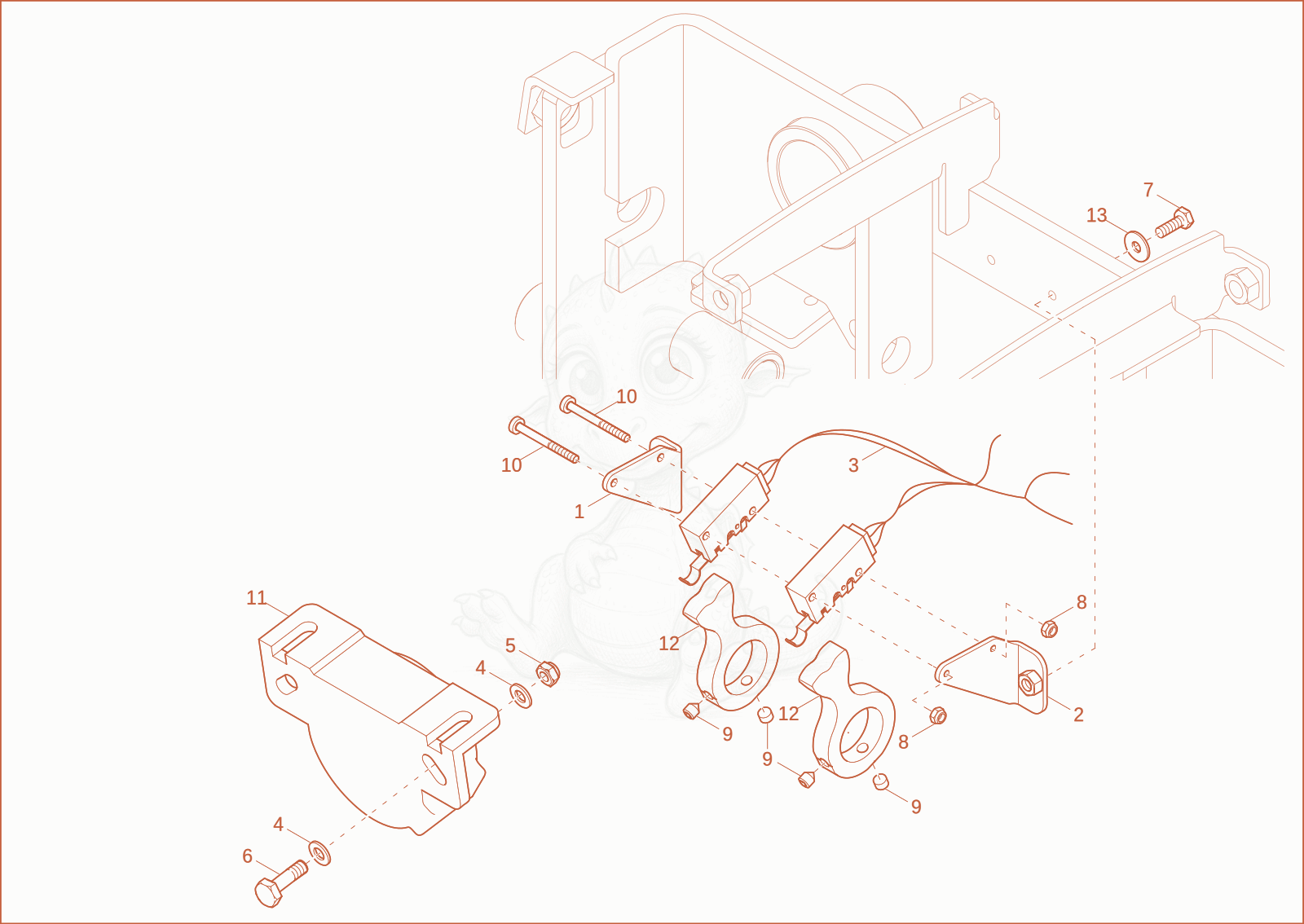

Exploded parts diagram of the driving signal (Option) SPC of a Wacker Neuson ET08, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000325911Price
    angle - 1000325911×1
  • 21000325744Price
    angle - 1000325744×1
  • 31000261933Price
    wiring harness - 1000261933×1
  • 41000500325Price
    WASHER - 1000500325×4
  • 51000085588Price
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 61000500329Not stocked
    screw×2
  • 71000085378Price
    hex screw - 1000085378×2
  • 81000222521Price
    HEXAGON NUT - 1000222521×2
  • 91000048746Not stocked
    thread pin×4
  • 101000048520Price
    flat head screw - 1000048520×2
  • 111000079025Price
    reverse warner - 1000079025×1
  • 121000260832Not stocked
    CRANK×2
  • 131000095342Price
    washer X-1000092302 - 1000095342×2
