ET08

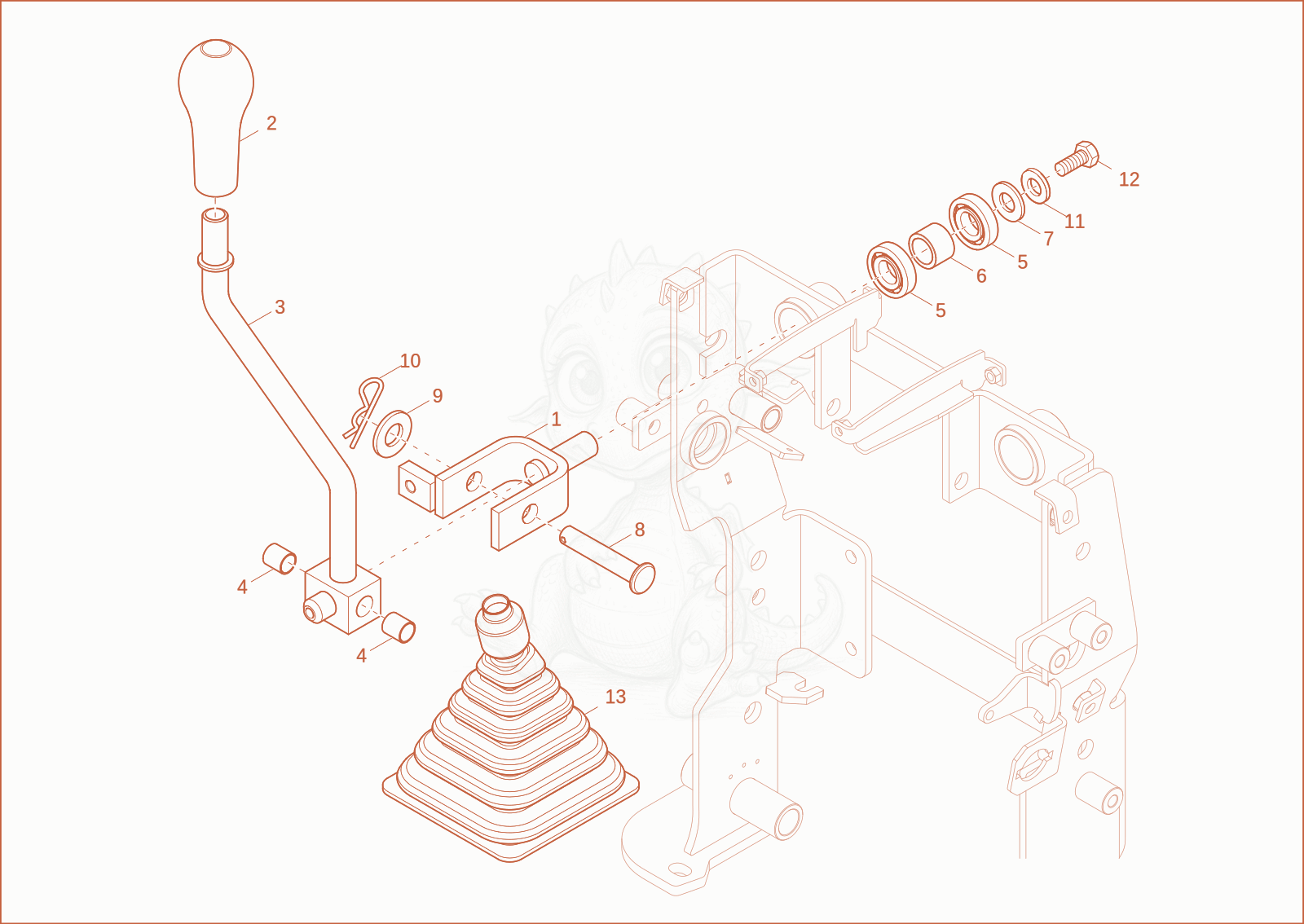

ET08 Swing/dipper lever SPC Diagram

Exploded parts diagram of the Swing/dipper lever SPC of a Wacker Neuson ET08, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000150984Price
    mounting - 1000150984×1
  • 21000151353Price
    buttonhandle - 1000151353×1
  • 31000325434Not stocked
    lever×1
  • 31000325536Price
    lever - 1000325536×1
  • 41000151351Price
    SLIDE BEARING - 1000151351×2
  • 51000079546Price
    ball bearing - 1000079546×2
  • 61000150910Price
    DISTANCE PIECE - 1000150910×1
  • 71000150904Price
    WASHER - 1000150904×1
  • 81000151004Price
    PIN - 1000151004×1
  • 91000015433Not stocked
    u-washer×1
  • 101000095365Price
    cotter pin 3,2x20 - 1000095365×1
  • 111000092292Price
    washer A8,4-140HV A2C DIN125 - 1000092292×2
  • 121000013008Not stocked
    hex screw×1
  • 131000151347Price
    BELLOW - 1000151347×1
