DW50

DW50 main harness option Diagram

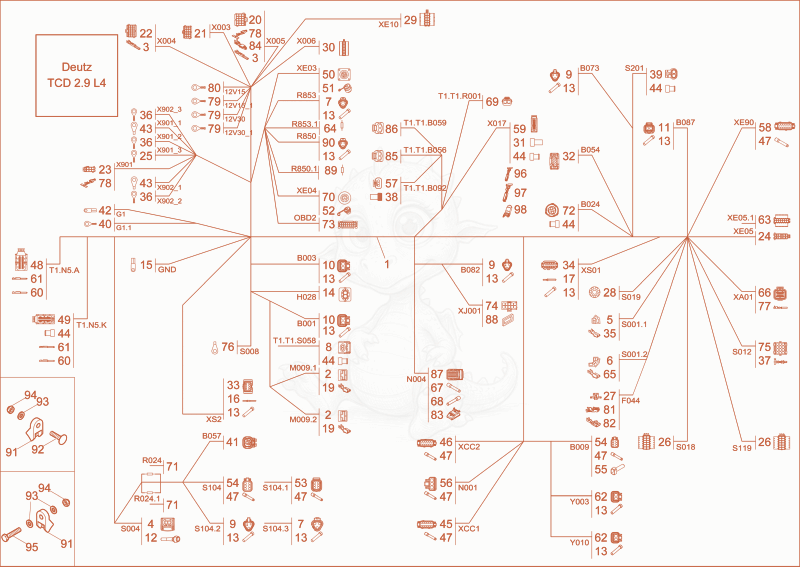

Exploded parts diagram of the main harness option of a Wacker Neuson DW50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000442246Not stocked
    main harness×1
  • 21000019583Not stocked
    plug sleeve housing×2
  • 31000027179Not stocked
    timer contact×27
  • 41000027359Not stocked
    plug housing×1
  • 51000027368Not stocked
    central plug×1
  • 61000027386Price
    PLUG - 1000027386×1
  • 71000027394Not stocked
    pin housing×3
  • 81000027410Price
    Housing - 1000027410×1
  • 91000027429Not stocked
    housing×3
  • 101000027438Not stocked
    bushing housing×2
  • 111000027445Not stocked
    pin housing×1
  • 121000027466Not stocked
    protecting cap×1
  • 131000030446Not stocked
    plug×44
  • 141000051981Not stocked
    pin housing×1
  • 151000081760Price
    CABLE LUG - 1000081760×1
  • 161000085028Not stocked
    pin contact×2
  • 171000085034Not stocked
    bushing contact×2
  • 181000085682Price
    fuse - 1000085682×1
  • 191000095371Not stocked
    plug sleeve×2
  • 201000098960Price
    bushing housing - 1000098960×1
  • 211000099055Price
    bushing housing - 1000099055×1
  • 221000099076Price
    bushing housing - 1000099076×1
  • 231000099201Price
    bushing housing - 1000099201×1
  • 241000100971Price
    bushing housing - 1000100971×1
  • 251000101271Price
    cable lug - 1000101271×1
  • 261000103949Price
    bushing housing - 1000103949×2
  • 271000104418Price
    FUSE HOLDER - 1000104418×1
  • 281000104430Price
    Plug housing - 1000104430×1
  • 291000104431Price
    bushing housing - 1000104431×1
  • 301000104432Price
    bushing housing - 1000104432×1
  • 311000104740Price
    lock plug - 1000104740×56
  • 321000105100Price
    bushing housing - 1000105100×1
  • 331000105117Price
    Pin housing - 1000105117×1
  • 341000105121Price
    BUSHING HOUSING - 1000105121×1
  • 351000107750Price
    plug sleeve - 1000107750×1
  • 361000107755Price
    cable lug - 1000107755×3
  • 371000107779Price
    BUSHING CONTACT - 1000107779×12
  • 381000109458Price
    lock plug - 1000109458×3
  • 391000110449Price
    plug bushing - 1000110449×1
  • 401000110764Price
    cable lug - 1000110764×1
  • 411000126125Price
    bushing housing - 1000126125×1
  • 421000126891Price
    CABLE LUG - 1000126891×1
  • 431000128452Not stocked
    cable lug×2
  • 441000128773Price
    Plug - 1000128773×20
  • 451000148250Not stocked
    plug bushing×1
  • 461000148271Price
    Pin housing - 1000148271×1
  • 471000161431Price
    Plug - 1000161431×57
  • 481000161934Not stocked
    CONTACT-HOUSING×1
  • 491000161936Price
    CONTACT-HOUSING - 1000161936×1
  • 501000163185Price
    bushing housing - 1000163185×1
  • 511000163187Not stocked
    protecting cap×1
  • 521000165664Price
    protecting cap - 1000165664×1
  • 531000180582Price
    pin housing - 1000180582×1
  • 541000183226Price
    bushing housing - 1000183226×2
  • 551000183228Not stocked
    protecting cap×1
  • 561000238087Price
    bushing housing - 1000238087×1
  • 571000250920Price
    bushing housing - 1000250920×1
  • 581000254182Price
    bushing housing - 1000254182×1
  • 591000260163Price
    plug sleeve housing - 1000260163×1
  • 601000266553Price
    Plug - 1000266553×28
  • 611000266556Price
    Plug - 1000266556×120
  • 621000270365Price
    Plug Deutsch - 1000270365×2
  • 631000271156Price
    pin housing - 1000271156×1
  • 641000289850Price
    resistor - 1000289850×1
  • 651000295703Price
    plug sleeve - 1000295703×2
  • 661000306921Not stocked
    bushing housing×1
  • 671000306978Not stocked
    blind plug×40
  • 681000306980Not stocked
    blind plug×8
  • 691000308732Price
    plug bushing - 1000308732×1
  • 701000312071Not stocked
    bushing housing×1
  • 711000312303Price
    resistor - 1000312303×2
  • 721000322614Not stocked
    plug bushing×1
  • 731000325528Price
    CONTACT-HOUSING - 1000325528×1
  • 741000263271Price
    bushing housing - 1000263271×1
  • 751000334439Not stocked
    bushing housing×1
  • 761000355751Not stocked
    cable lug×1
  • 771000358936Not stocked
    pin contact×9
  • 781000362527Not stocked
    bushing contact×7
  • 791000364917Not stocked
    cable lug×3
  • 801000364991Not stocked
    cable lug×1
  • 811000370332Not stocked
    fuse holder×2
  • 821000306602Not stocked
    plug×2
  • 831000371243Price
    cap - 1000371243×1
  • 841000383920Not stocked
    timer contact×2
  • 851000404126Not stocked
    bushing housing×1
  • 861000404137Not stocked
    bushing housing×1
  • 871000406716Not stocked
    plug×1
  • 881000370815Price
    seal - 1000370815×1
  • 891000289850Price
    resistor - 1000289850×1
  • 901000027394Not stocked
    pin housing×3
  • 911000398401Not stocked
    sockets×16
  • 921000299983Price
    door strap screw - 1000299983×15
  • 931000015430Not stocked
    washer×20
  • 941000085588Price
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×16
  • 951000015339Not stocked
    hex screw×1
  • 961000260164Price
    Tube - 1000260164×1
  • 971000338907Not stocked
    Tube×1
  • 981000261548Price
    cover cap - 1000261548×1
