DW50

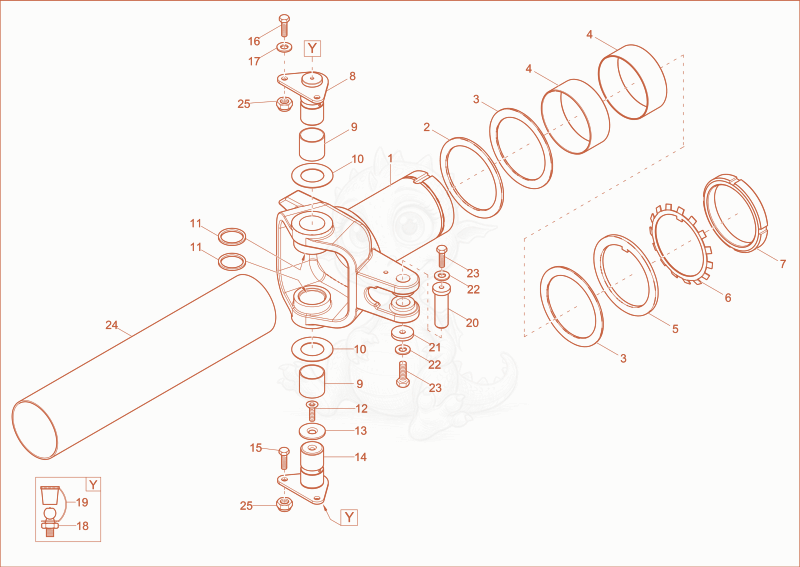

DW50 pivot block Diagram

Exploded parts diagram of the pivot block of a Wacker Neuson DW50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000116906Price
    Pivotblock 1000116906×1
  • 21000124747Price
    WASHER - 1000124747×1
  • 31000162229Price
    WASHER - 1000162229×2
  • 41000124050Price
    BUSHING - 1000124050×2
  • 51000125462Price
    SUPPORT WASHER - 1000125462×1
  • 61000113203Price
    lock plate - 1000113203×1
  • 71000113202Price
    Setnut 1000113202×1
  • 81000125323Price
    Pinbucklehinge 1000125323×1
  • 91000113175Price
    BUSHING - 1000113175×2
  • 101000113174Price
    SHIM - 1000113174×2
  • 111000015707Not stocked
    pin gasket×2
  • 121000085536Price
    COUNTERSUNK SCREW - 1000085536×1
  • 131000163484Price
    WASHER - 1000163484×1
  • 141000339371Not stocked
    pin buckle himge×1
  • 151000015346Not stocked
    hex screw×2
  • 161000085414Price
    hex screw - 1000085414×2
  • 171000015432Price
    washer 10,5 A2C DIN125 - 1000015432×2
  • 181000015476Not stocked
    grease nipple×2
  • 191000015480Not stocked
    cap grease nipple×2
  • 201000125383Price
    STEERING RAM PIN - 1000125383×1
  • 211000163483Price
    WASHER - 1000163483×2
  • 221000015450Not stocked
    northlock disc×1
  • 231000015347Not stocked
    hex screw×2
  • 241000108683Price
    hose protection - 1000108683×1
  • 251000357535Not stocked
    hexagon nut×4
