DW50

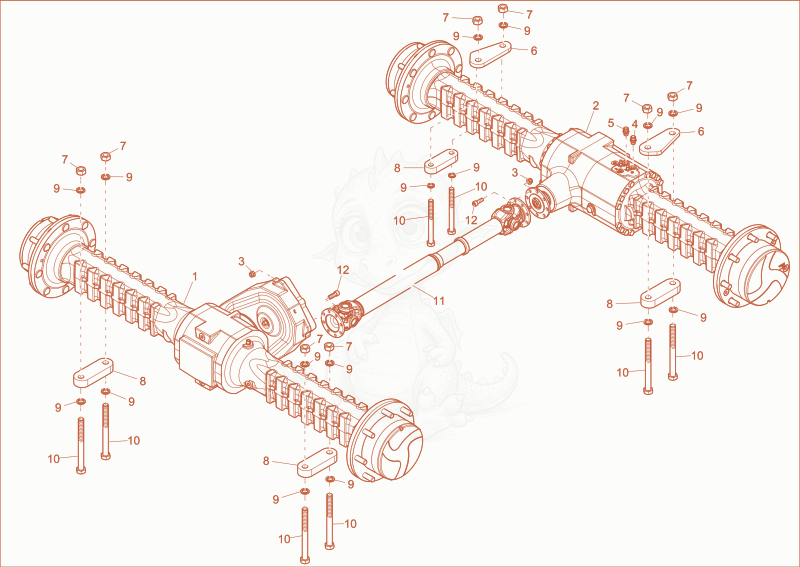

DW50 AXLE Diagram

Exploded parts diagram of the AXLE of a Wacker Neuson DW50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000329481Not stocked
    rear axle×1
  • 21000329482Not stocked
    front axle×1
  • 31000015408Price
    nut M10-8 A2C-DIN985 - 1000015408×16
  • 41000083062Price
    GEO12LM14X1,5OMDA3C - 1000083062×1
  • 51000108438Price
    GE08LM14X1,5OROMDA3C - 1000108438×1
  • 61000303180Price
    axle plate - 1000303180×2
  • 71000021948Not stocked
    hexagon nut×8
  • 81000334318Not stocked
    axle bracket×4
  • 91000094973Price
    NORTHLOCK DISC - 1000094973×16
  • 101000085351Price
    HEX SCREW - 1000085351×8
  • 111000366193Not stocked
    cardan shaft×1
  • 121000085502Price
    allen screw M10x30 Geomet 500A DIN912 - 1000085502×16
