DW50-2

DW50-2 main harness 1 Diagram

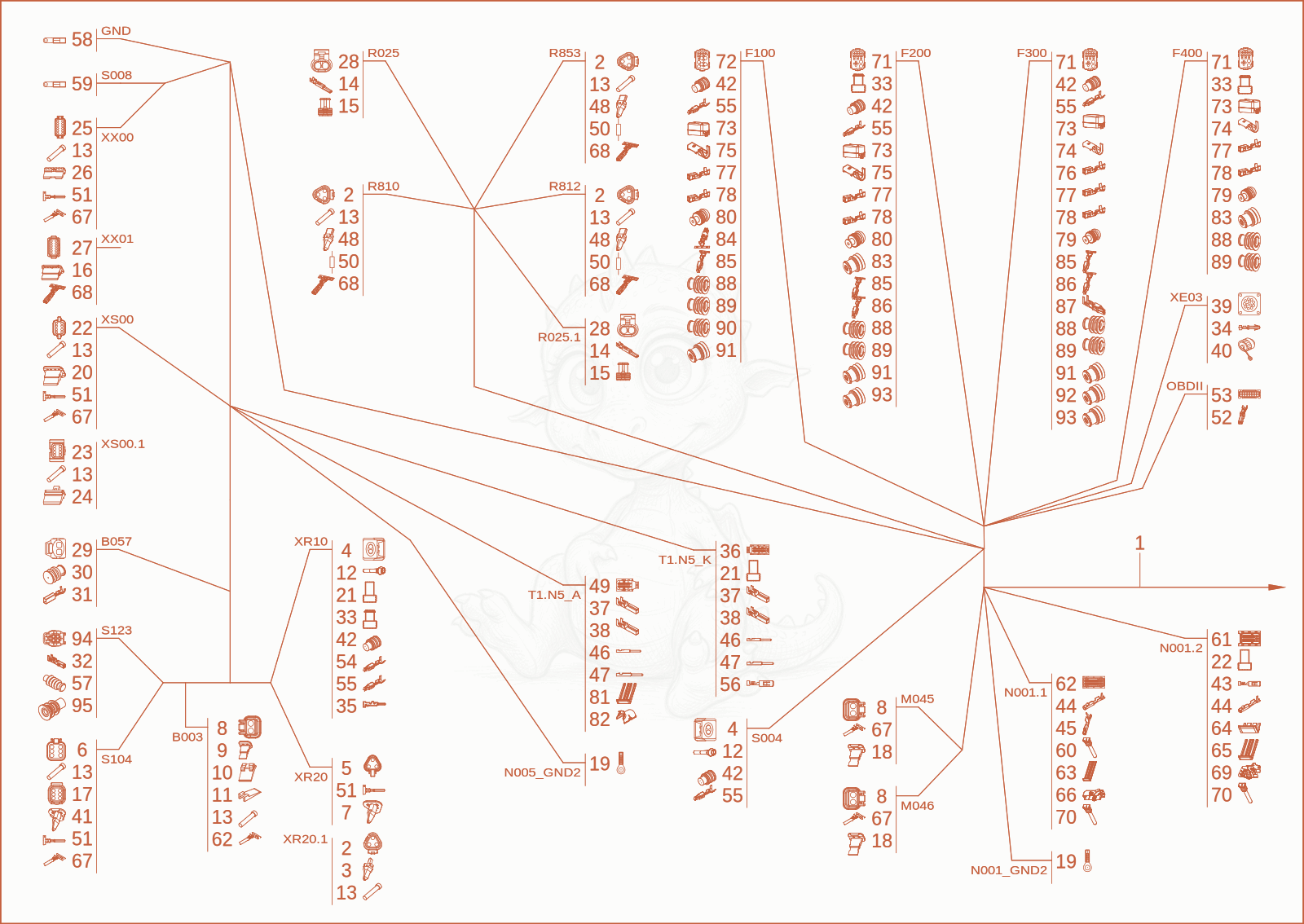

Exploded parts diagram of the main harness 1 of a Wacker Neuson DW50-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000550262Not stocked
    main harness×1
  • 21000027394Not stocked
    pin housing×4
  • 31000027400Price
    wedge - 1000027400×1
  • 41000027410Price
    Housing - 1000027410×2
  • 51000027429Not stocked
    housing×1
  • 61000027431Not stocked
    bushing housing×1
  • 71000549659Not stocked
    locking×1
  • 81000027438Not stocked
    bushing housing×1
  • 91000027442Not stocked
    wedge×1
  • 101000027445Not stocked
    pin housing×1
  • 111000027449Not stocked
    housing×1
  • 121000027466Not stocked
    protecting cap×2
  • 131000030446Not stocked
    plug×27
  • 141000051990Not stocked
    bushing contact×4
  • 151000052672Not stocked
    seal×4
  • 161000085012Not stocked
    locking pin×1
  • 171000085023Price
    Pin housing - 1000085023×1
  • 181000475418Price
    Key - 1000475418×1
  • 191000096859Price
    CABLE LUG - 1000096859×2
  • 201000105114Price
    wedge - 1000105114×1
  • 211000104739Price
    seal - 1000104739×13
  • 221000105113Price
    bushing housing - 1000105113×1
  • 231000105117Price
    Pin housing - 1000105117×1
  • 241000105118Price
    wedge - 1000105118×1
  • 251000105122Price
    bushing housing - 1000105122×1
  • 261000105123Price
    WEDGE - 1000105123×1
  • 271000105124Price
    pin housing - 1000105124×1
  • 281000110449Price
    plug bushing - 1000110449×2
  • 291000126125Price
    bushing housing - 1000126125×1
  • 301000126126Price
    Seal - 1000126126×2
  • 311000126127Price
    BUSHING CONTACT - 1000126127×2
  • 321000127379Price
    bushing contact - 1000127379×3
  • 331000128773Price
    Plug - 1000128773×10
  • 341000147471Price
    BUSHING CONTACT - 1000147471×6
  • 351000155228Price
    Pin contact - 1000155228×1
  • 361000161936Price
    CONTACT-HOUSING - 1000161936×1
  • 371000161939Price
    Tube - 1000161939×16
  • 381000161940Price
    Tube - 1000161940×58
  • 391000163185Price
    bushing housing - 1000163185×1
  • 401000163187Not stocked
    protecting cap×1
  • 411000549660Not stocked
    locking×1
  • 421000246747Price
    seal - 1000246747×15
  • 431000260129Price
    Tube - 1000260129×6
  • 441000260130Price
    Tube - 1000260130×58
  • 451000260141Price
    Tube - 1000260141×6
  • 461000266553Price
    Plug - 1000266553×12
  • 471000266556Price
    Plug - 1000266556×62
  • 481000279149Price
    locking - 1000279149×3
  • 491000288543Price
    Plug Sleeve Housing - 1000288543×1
  • 501000289850Price
    resistor - 1000289850×3
  • 511000309284Not stocked
    bushing contact×8
  • 521000325527Not stocked
    bushing contact×9
  • 531000325528Price
    CONTACT-HOUSING - 1000325528×1
  • 541000333910Not stocked
    timer contact×1
  • 551000334041Not stocked
    timer contact×15
  • 561000338907Not stocked
    Tube×6
  • 571000344773Price
    Plug - 1000344773×1
  • 581000346811Not stocked
    cable lug×1
  • 591000355751Not stocked
    cable lug×1
  • 601000359477Not stocked
    blind plug×18
  • 611000359480Not stocked
    pin housing×1
  • 621000359522Not stocked
    pin housing×1
  • 631000359526Price
    locking - 1000359526×1
  • 641000359527Price
    locking - 1000359527×1
  • 651000359528Price
    locking - 1000359528×1
  • 661000359529Price
    COVER - 1000359529×1
  • 671000359612Not stocked
    plug connection×18
  • 681000362407Not stocked
    pin contact×8
  • 691000374590Price
    cover - 1000374590×1
  • 701000377990Not stocked
    blind plug×66
  • 711000385300Not stocked
    fuse holder×3
  • 721000385304Not stocked
    fuse holder×1
  • 731000386208Price
    cover - 1000386208×4
  • 741000386504Price
    contactpin - 1000386504×4
  • 751000386505Price
    contactpin - 1000386505×4
  • 761000386509Price
    contactpin - 1000386509×4
  • 771000386510Price
    contactpin - 1000386510×34
  • 781000386551Price
    contactpin - 1000386551×10
  • 791000386553Not stocked
    seal×4
  • 801000386554Not stocked
    seal×4
  • 811000395601Not stocked
    locking×1
  • 821000395602Not stocked
    protecting cap×1
  • 831000407853Not stocked
    blind plug×14
  • 841000407857Not stocked
    bushing contact×4
  • 851000407858Not stocked
    bushing contact×14
  • 861000407859Not stocked
    bushing contact×9
  • 871000407862Not stocked
    bushing contact×2
  • 881000407864Not stocked
    seal×10
  • 891000407866Not stocked
    seal×38
  • 901000407869Not stocked
    seal×4
  • 911000407873Not stocked
    seal×14
  • 921000407874Not stocked
    seal×2
  • 931000407875Not stocked
    seal×9
  • 941000474125Not stocked
    bushing housing×1
  • 951000234666Not stocked
    seal×3
