DW50-2

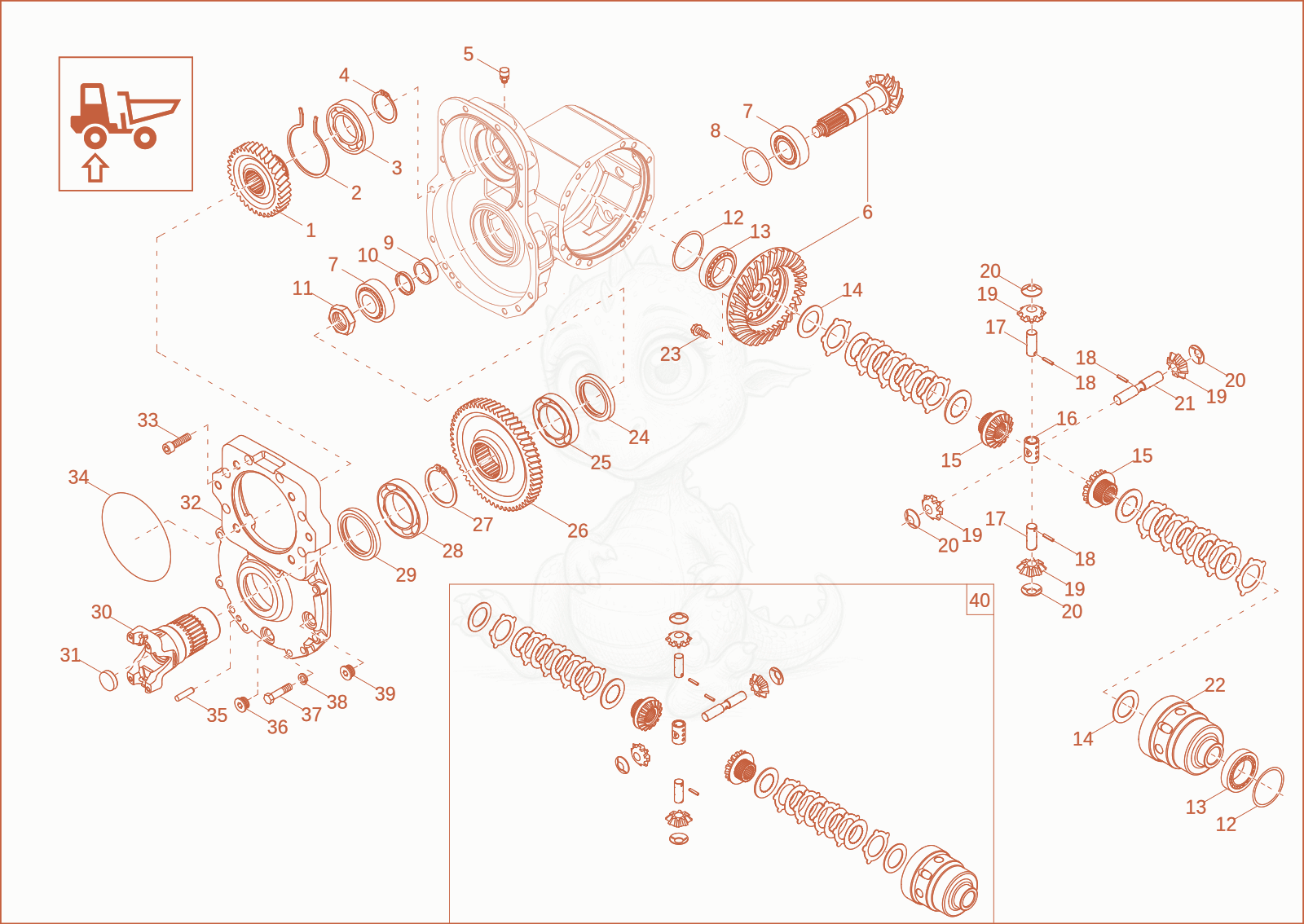

DW50-2 differential axle Diagram
- 11000491611Not stockedgear×1
- 21000407652Not stockedlock ring×1
- 31000407649Not stockedball bearing×1
- 41000407653Not stockedlock ring×1
- X - 1000165904 Breather - 1000113680×1
- 61000491704Not stockedpinion×1
- bearing - 1000102424×2
- 81000330278Not stockedfitting disc×1
- SHIM - 1000106924×1
- 101000407823Not stockedfitting disc×1
- 111000491608Not stockednut×1
- 121000330296Not stockedSET OF SPACERS×1
- TAPER ROLLER BEARING - 1000102596×2
- WASHER - 1000102600×2
- diff.shaft gear - 1000183291×2
- cross piece - 1000102609×1
- PIN - 1000190281×2
- pin - 1000102607×3
- pinion - 1000183292×4
- WASHER - 1000102605×4
- PIN - 1000190283×1
- Differentialhousing 1000162223×1
- SCREW - 1000162065×12
- seal - 1000407655×1
- 251000407650Not stockedball bearing×1
- 261000491612Not stockedgear×1
- 271000407654Not stockedlock ring×1
- 281000407651Not stockedball bearing×1
- seal - 1000407656×1
- 301000491636Not stockedflange×1
- plug - 1000407828×1
- 321000407830Not stockedcover×1
- CHEESE HEAD SCREW - 1000143378×6
- 341000170088Not stockedo-ring×1
- pin - 1000407834×1
- magnet plug - 1000102388×1
- screw - 1000407835×8
- spring washer - 1000143395×8
- PLUG - 1000143368×1
- 401000422679Not stockeddifferential axle×1
