DW50-2

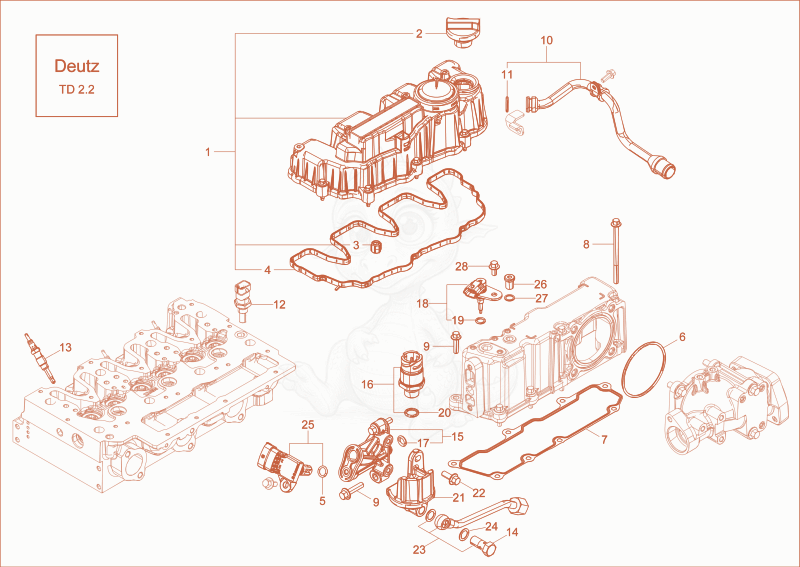

DW50-2 CYLINDER HEAD, VALVE COVER Diagram

Exploded parts diagram of the CYLINDER HEAD, VALVE COVER of a Wacker Neuson DW50-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000457168Not stocked
    cylinder head hood×1
  • 21000087203Price
    Lock - 1000087203×1
  • 31000326756Not stocked
    seal×1
  • 41000457141Not stocked
    seal×1
  • 51000329306Price
    Gasket - 1000329306×1
  • 61000329350Price
    Ring - 1000329350×1
  • 71000457146Not stocked
    seal×1
  • 81000343731Not stocked
    hex screw×2
  • 91000343732Not stocked
    hex screw×8
  • 101000457134Not stocked
    breather line×1
  • 111000343734Not stocked
    seal ring×1
  • 121000135466Price
    Temperature sensor - 1000135466×1
  • 131000275036Price
    GLOW PLUG - 1000275036×3
  • 141000170368Price
    Banjo bolt - 1000170368×1
  • 151000423944Price
    adapter - 1000423944×1
  • 161000423914Not stocked
    pressure sensor×1
  • 171000409594Price
    O-ring - 1000409594×1
  • 181000409596Not stocked
    temperature sensor×1
  • 191000409598Not stocked
    seal ring×1
  • 201000423900Price
    O-ring - 1000423900×1
  • 211000423942Price
    bracket - 1000423942×1
  • 221000170535Not stocked
    hex screw×2
  • 231000423943Not stocked
    pipe line×1
  • 241000343669Not stocked
    seal ring×2
  • 251000329369Price
    Sensor - 1000329369×1
  • 261000457214Price
    screw - 1000457214×1
  • 271000152442Price
    Seal ring - 1000152442×1
  • 281000170535Not stocked
    hex screw×2
