DW30

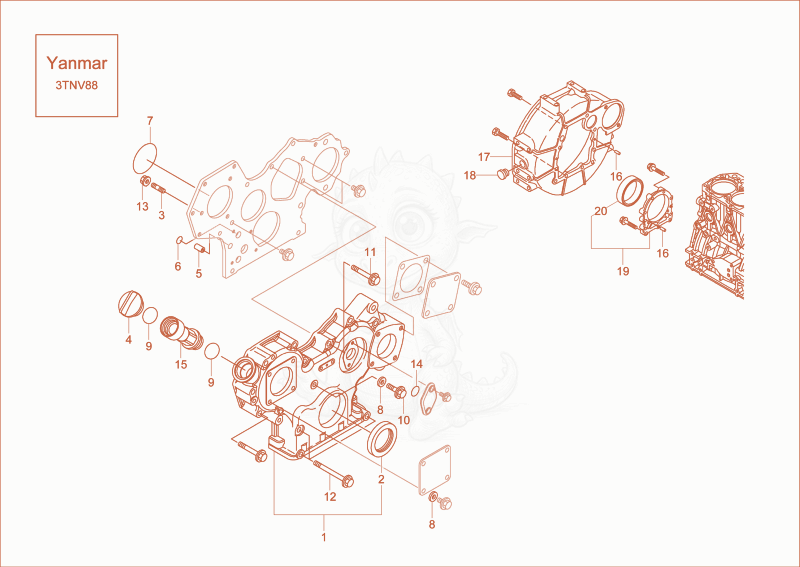

DW30 SEAL - CRANKSHAFT option Diagram
- 11000183844Not stockedGEARBOX×1
- shaft seal - 1000178895×1
- Stud bolt - 1000280545×3
- 41000002921Not stockedoil filler cap×1
- PIPE LINE - 1000144947×2
- O-RING - 1000107920×2
- O-RING - 1000085182×1
- 81000063378Not stockedseal ring×5
- 91000035757Not stockedseal ring×2
- SCREW - 1000126868×1
- HEX SCREW - 1000085184×10
- SCREW - 1000107741×3
- Hexagon nut - 1000098728×3
- O-RING - 1000021889×1
- 151000065540Not stockedoil filler pipe×1
- fitting pin - 1000102791×4
- Flywheelhousing 1000107762×1
- 181000064550Not stockedrubber plug×1
- cover - 1000393923×1
- 201000393924Not stockedshaft seal×1
