DW30

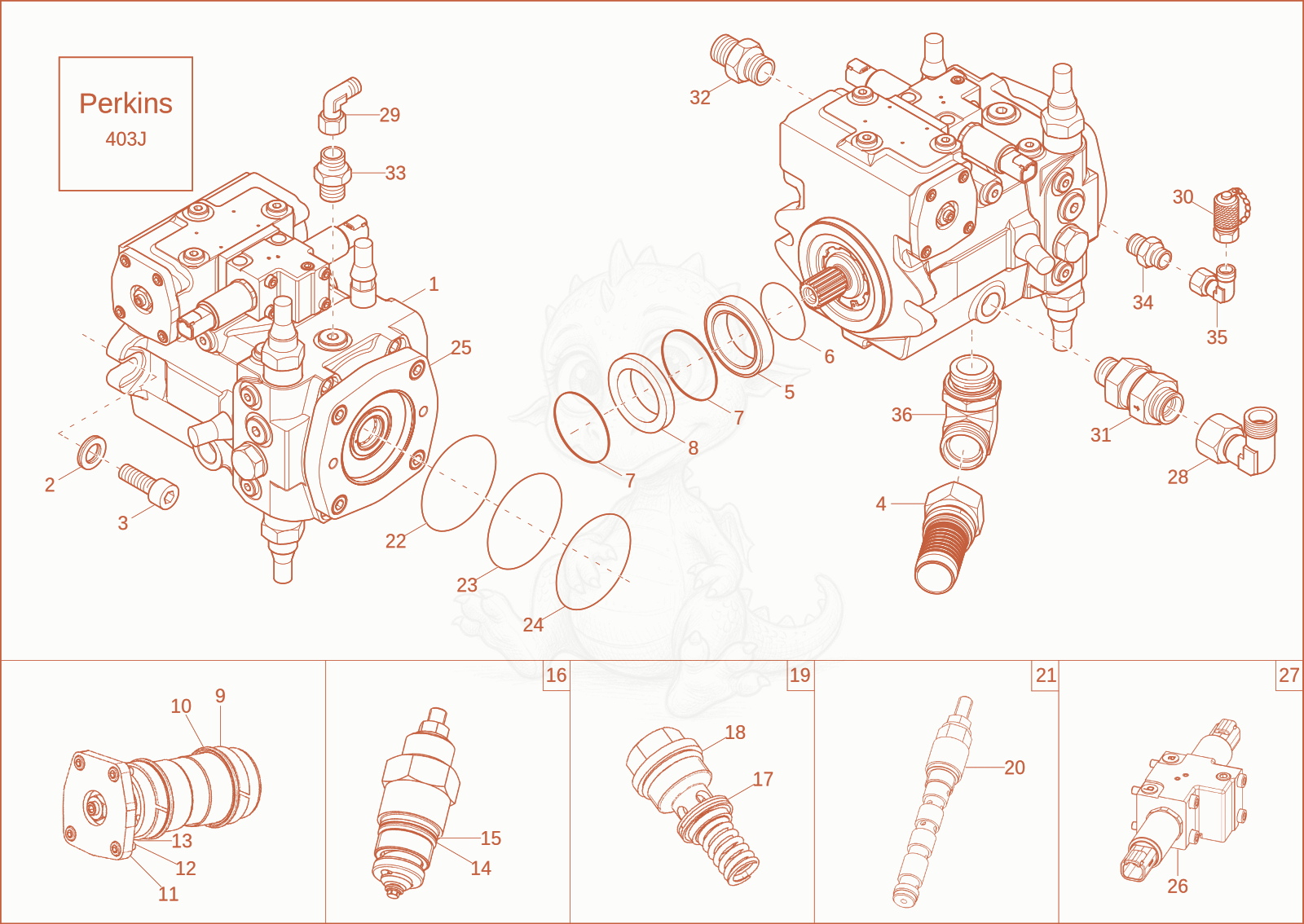

DW30 HYDRAULIC PUMP (Option) Diagram
- 11000389457Not stockedpump×1
- 21000015453Not stockednorthlock disc×2
- 31000447909Not stockedscrew×2
- 41000398352Not stockedhose connection×1
- 51000446594Not stockedcylinder roller bearing×1
- 61000446595Not stockedlock ring×1
- LOCK RING - 1000113770×2
- SEAL RING - 1000113771×1
- Ring - 1000152201×2
- 101000446596Not stockedseal kit×2
- o-ring - 1000184699×1
- 121000446599Not stockedlock ring×1
- O-RING - 1000087820×1
- O-Ring - 1000039216×1
- SUPPORT RING - 1000087822×1
- PRESSURE LIMIT RELIEFVALVE - 1000098634×1
- 171000423128Not stockedsteel seal×1
- O-ring - 1000089364×1
- pressure limit reliefvalve - 1000155106×1
- O-RING - 1000087823×1
- shut off valve - 1000124065×1
- HYDRAULIC PUMP SEAL - 1000225434×1
- O-RING - 1000127086×1
- 241000393854Not stockedo-ring×1
- 251000446600Not stockedgear pump×1
- seal - 1000247528×1
- 271000423132Not stockeddistributor×1
- 281000015513Not stockedscrew joint×1
- 291000015510Not stockedscrew joint×1
- 301000000575Not stockedminimess point×1
- 311000400154Not stockedscrew joint×1
- GE18LM22X1,5EDOMDA3C - 1000085104×1
- GE10LM18X1,5EDOMDA3C - 1000085112×1
- GE08LM18X1,5EDOMDA3C - 1000085046×1
- EW08LOMD - 1000000542×1
- WEE28LMOMD - 1000284899×1
