DV125

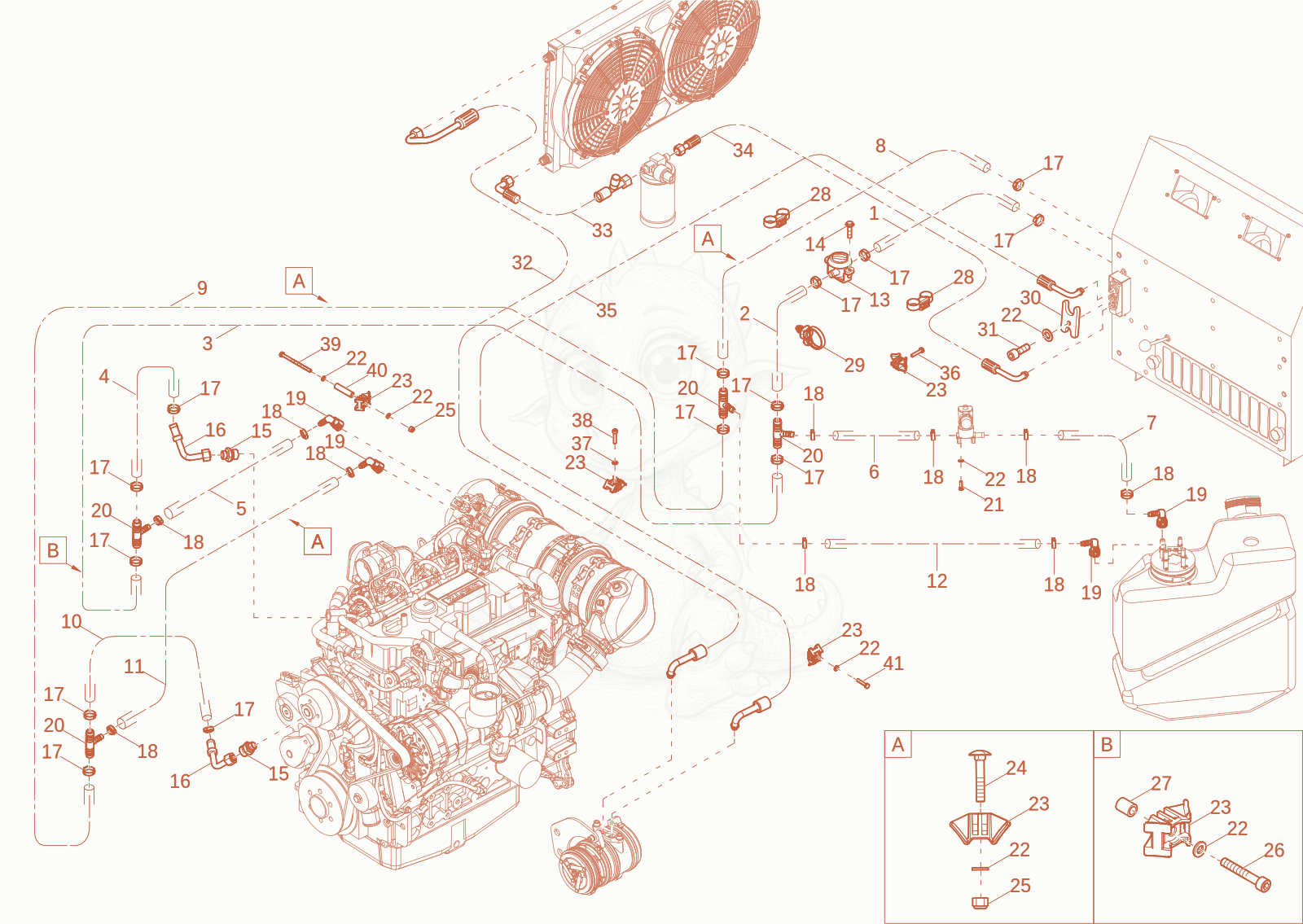

DV125 AIR-CONDITIONING PLANT INST. Diagram
- heater hose ID15x3,5 - 1000261871×0.55
- heater hose ID15x3,5 - 1000261871×1.15
- heater hose ID15x3,5 - 1000261871×1.55
- heater hose ID15x3,5 - 1000261871×0.45
- 51000324638Not stockedfuel line×0.75
- 61000324638Not stockedfuel line×0.6
- 71000324638Not stockedfuel line×0.65
- heater hose ID15x3,5 - 1000261871×0.8
- heater hose ID15x3,5 - 1000261871×1.65
- heater hose ID15x3,5 - 1000261871×0.4
- 111000324638Not stockedfuel line×0.8
- 121000324638Not stockedfuel line×0.5
- 131000147152Not stockedwater valve×1
- hex screw - 1000158721×2
- 151000000558Not stockedscrew joint×2
- hose sleeve - 1000267953×2
- hose clamp - 1000267810×14
- 181000324636Not stockedhose clamp×10
- 191000333091Not stockedquick coupling×4
- 201000380468Not stockedconnection piece×4
- HEX SCREW - 1000085382×4
- 221000015430Not stockedu-washer×14
- sockets - 1000291567×11
- SCREW M6x35-8.8-A2C - 1000498928×5
- 251000357533Not stockedhexagon nut×7
- Screw M6x40-8.8 A2C DIN912 - 1000085458×1
- Sleeve - 1000490868×1
- 281000371366Not stockedcable strap×2
- 291000375997Not stockedfixing bracket×1
- BRACKET - 1000338212×1
- allen screw M6x16-8.8 A2C - 1000085455×1
- hose aircondition system - 1000458888×1
- 331000388671Not stockedhose×1
- 341000388672Not stockedhose×1
- 351000507352Not stockedhose aircondition system×1
- 361000015339Not stockedhex screw×2
- washer M6,4-DIN134 - 1000094966×1
- 381000334449Not stockedflat head screw×1
- 391000473758Not stockedscrew×1
- pipe - 1000460591×1
- 411000015369Not stockedcheese head screw×1
