DV125

DV125 locking Diagram

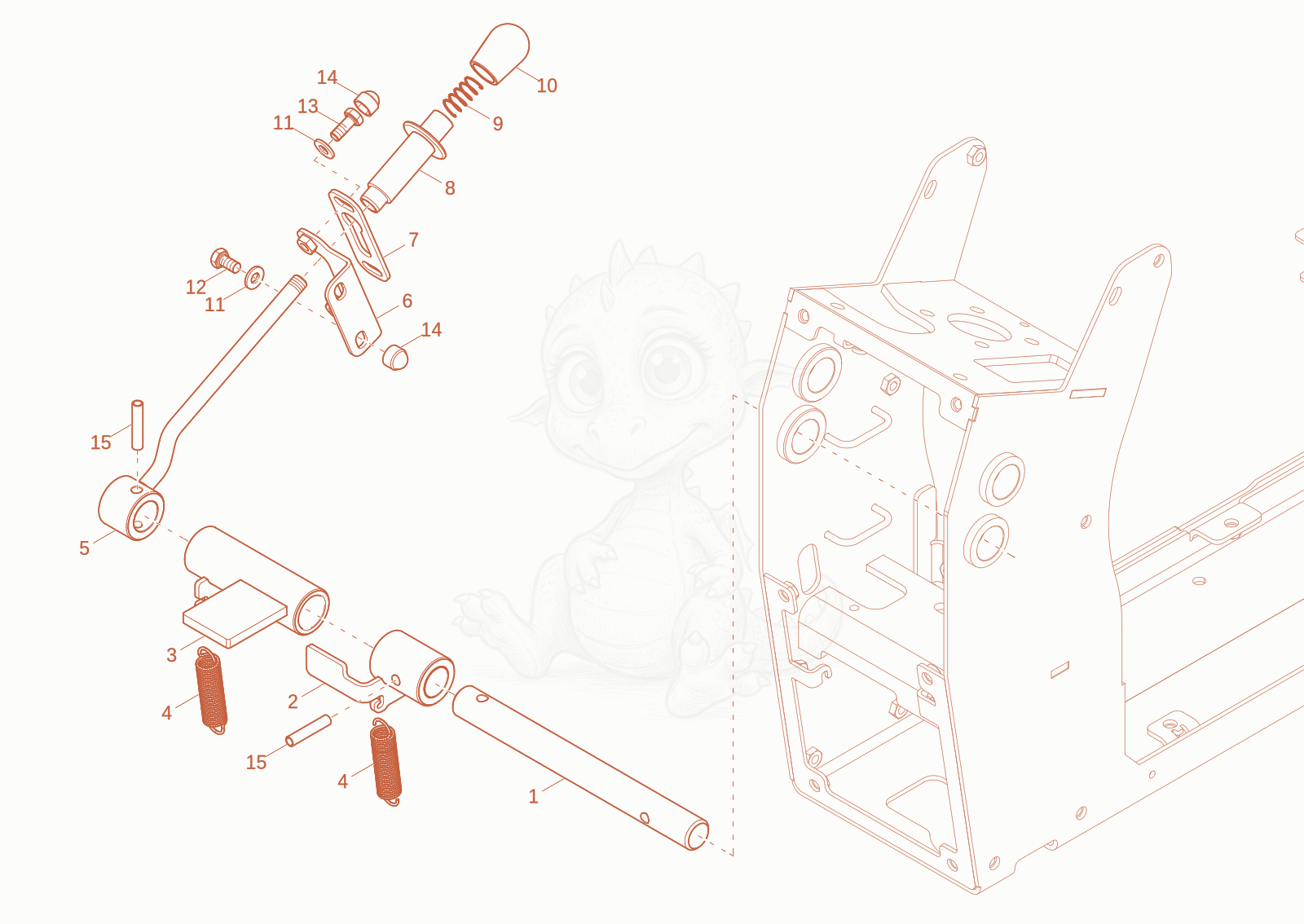

Exploded parts diagram of the locking of a Wacker Neuson DV125, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000446588Price
    shaft - 1000446588×1
  • 21000445736Not stocked
    bracket×1
  • 31000445735Price
    locking - 1000445735×1
  • 41000247991Price
    tension spring - 1000247991×2
  • 51000445737Not stocked
    rod×1
  • 61000445596Not stocked
    bracket×1
  • 71000471156Not stocked
    perfored plate×1
  • 81000384647Not stocked
    pipe line×1
  • 91000380863Not stocked
    pressure spring×1
  • 101000384648Not stocked
    handle×1
  • 111000015448Not stocked
    washer×4
  • 121000019136Not stocked
    hex screw×2
  • 131000013008Not stocked
    hex screw×2
  • 141000098999Price
    Plug - 1000098999×4
  • 151000085652Price
    cotter pin - 1000085652×2
