DV125

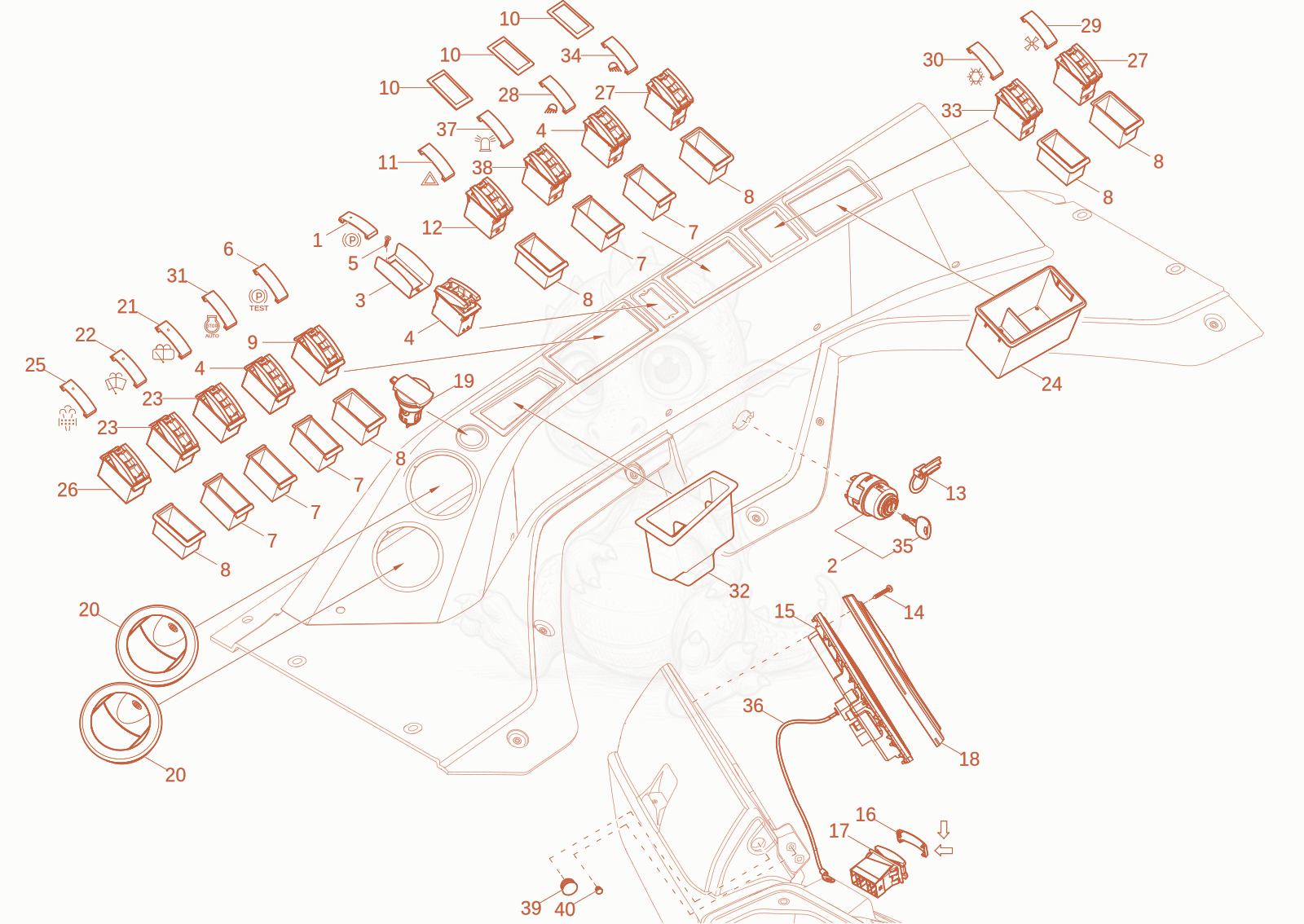

DV125 instrument panel Diagram
- Symbol - 1000187682×1
- 21000429182Not stockedglow start switch×1
- 31000397439Not stockedprotection×1
- 41000353496Not stockedtilt switch×3
- screw - 1000398140×2
- SYMBOL - 1000395685×1
- 71000027178Not stockedswitch frame×5
- 81000027168Not stockedswitch frame×6
- 91000353593Not stockedRocker switch×1
- 101000027006Not stockedblind cover×3
- symbol - 1000142880×1
- 121000353603Not stockedtilt switch×1
- cover ignition lock - 1000081684×1
- 141000428018Not stockedscrew×4
- 151000403551Not stockeddisplay×1
- SYMBOL - 1000395682×1
- 171000353597Not stockedtilt switch×1
- protection - 1000402854×1
- Power socket 12V Cabin - 1000485001×1
- 201000386597Not stockedround nozzle×2
- SYMBOL WASH DEVICE - 1000098304×1
- symbol wiper - 1000098303×1
- 231000353601Not stockedfeeler×2
- board - 1000248085×1
- SYMBOL - 1000289073×1
- 261000353594Not stockedfeeler×1
- 271000353588Not stockedtilt switch×2
- symbol headlight - 1000096654×1
- 291000052358Not stockedsymbol×1
- symbol - 1000098305×1
- 311000395684Not stockedsymbol×1
- board - 1000404486×1
- 331000353495Not stockedtilt switch×1
- 341000052361Not stockedsymbol×1
- EZ17 Key without cap - 1000184819×1
- 361000489017Not stockedearth cable×1
- 371000052356Not stockedsymbol×1
- 381000353495Not stockedtilt switch×1
- PLUG - 1000279891×2
- 401000327361Not stockedplug×2
