DPU7060RC-VIBROPLATE,DIESEL,RC

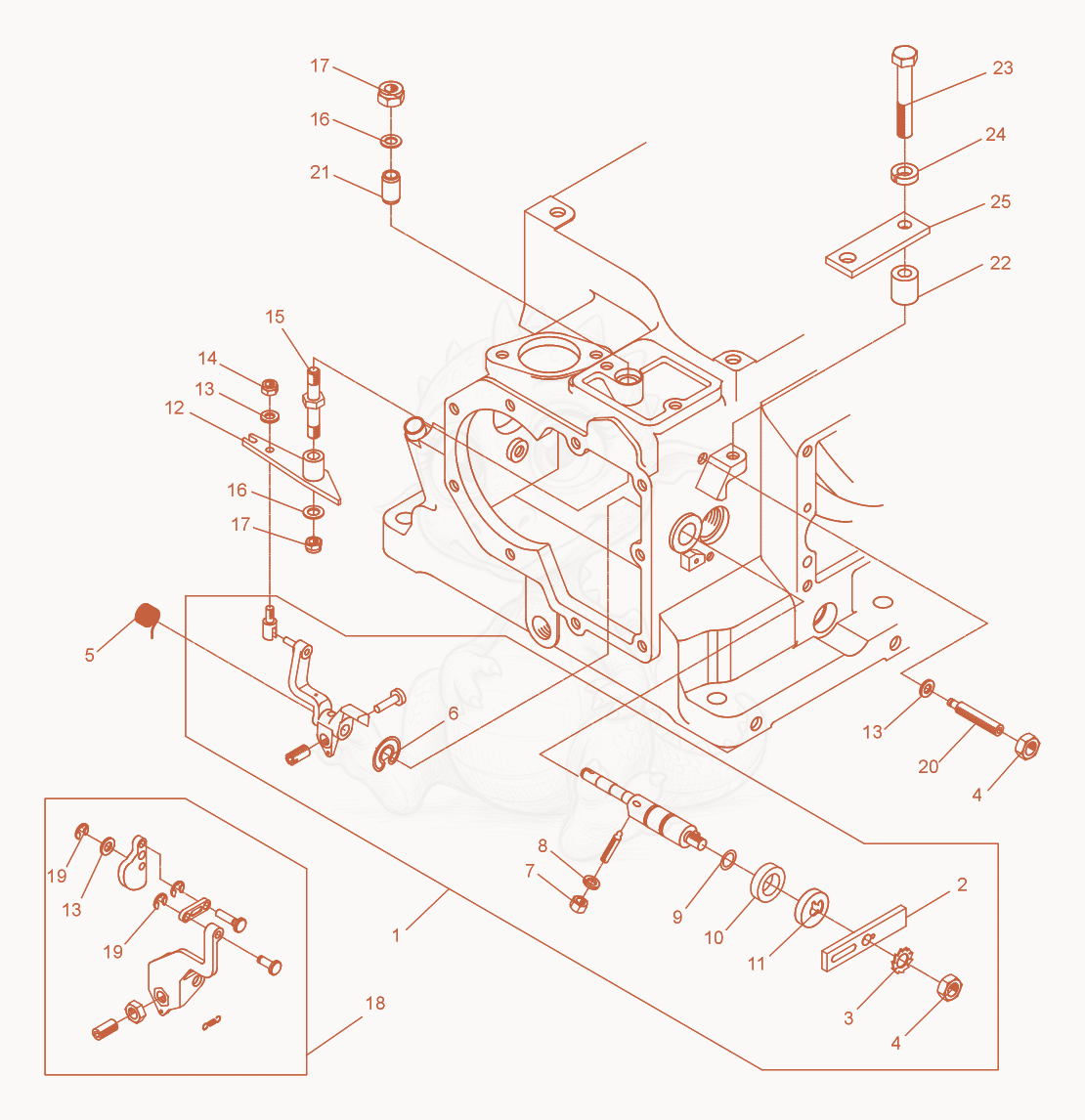

DPU7060RC Adjusting Assy. cpl. Diagram
- 15000099462Not stockedAdjusting×1
- 25000068204Not stockedLever×1
- 35000031168Not stockedFan type lock washer×1
- X-0073665 NUT M8, HEX. - 5000096677×2
- 55000034345Not stockedReturn spring×1
- RET.RING 26.3MM,FORM D - 5000034343×1
- NUT-HEX,M5 8,ISO4032 - 5000010879×1
- WASHER-LOCK B5 - 5000010652×1
- 95000034342Not stockedRubber ring×1
- RING-SPACER - 5000069233×1
- DISC - 5000044094×1
- 125000099461Not stockedGovernor lever×1
- WASHER B5.3 FLAT - 5000010625×3
- NUT-LOCK M5 HEX. - 5000010369×1
- 155000099460Not stockedThreaded bolt×1
- 165000067847Not stockedShim ring×2
- NUT-LOCK M8 HEX - 5000010367×2
- PRIMER-ASSEMBLY - 5000104586×1
- RET.RING-EXT 4MM,E TYP - 5002006160×3
- 205000099471Not stockedThreaded pin×1
- 215000099459Not stockedBush×1
- 225000099472Not stockedSpacer×1
- SCREW M8 X 40 HX.HD. - 5000011341×1
- WASHER-LOCK B8 - 5000012397×1
- 255000099473Not stockedRetainer×1
