DPU7060RC-VIBROPLATE,DIESEL,RC

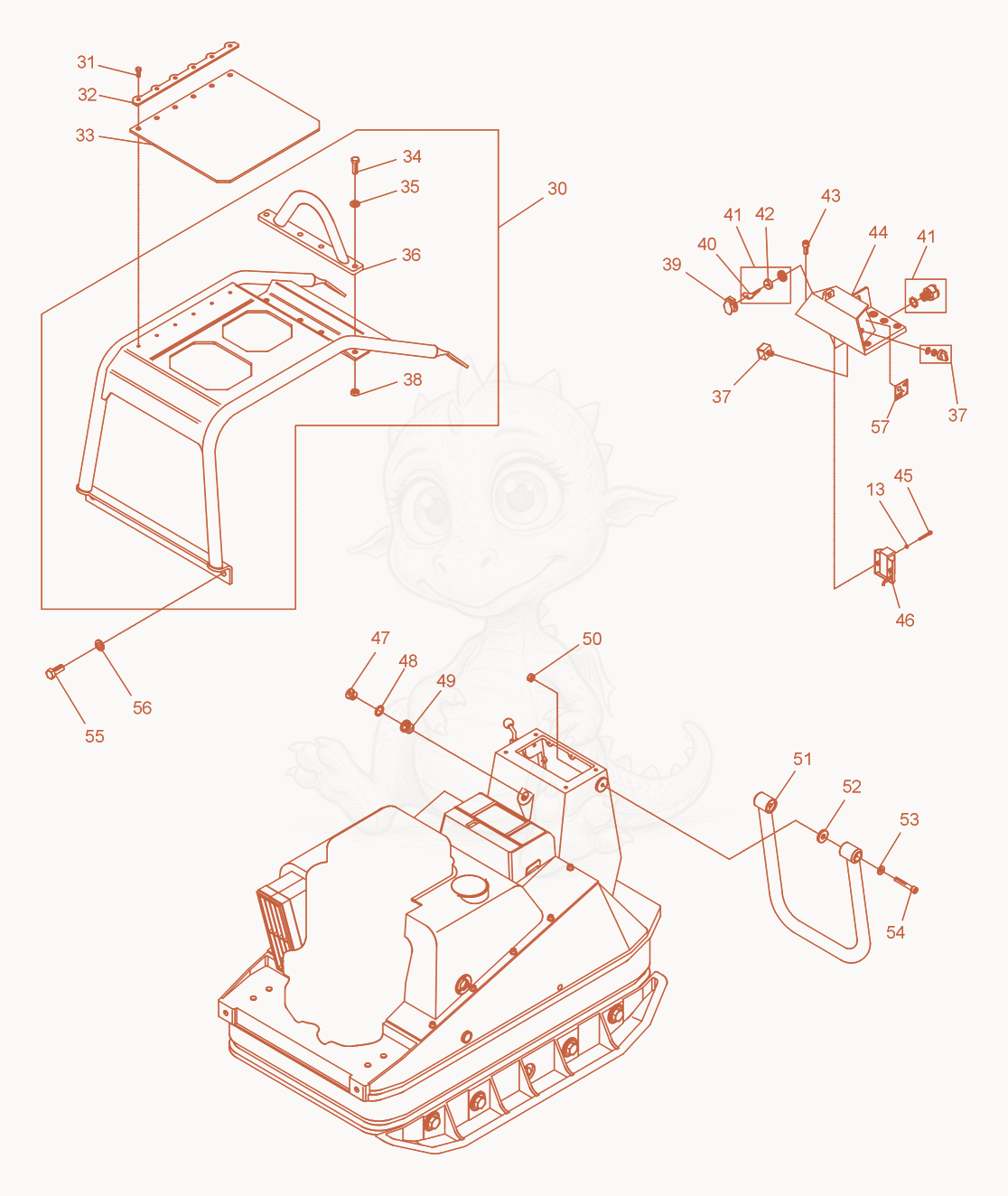

DPU7060RC Vibratory Plate cpl. Diagram

Exploded parts diagram of the Vibratory Plate cpl. of a Wacker Neuson DPU7060RC, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 305000102171Not stocked
    Protective frame×1
  • 315000013551Price
    SCREW M8 X 18 HX.HD. - 5000013551×6
  • 325000099915Price
    STRAP-HOLDER - 5000099915×1
  • 335000099909Price
    COVER-ACCESS - 5000099909×1
  • 345000011422Price
    SCREW M12 X 35 HX.HD. - 5000011422×4
  • 355000021465Price
    WASHER-LOCK HS12,HIGH TENSION - 5000021465×4
  • 365000099055Price
    BRACKET-LIFTING EYE - 5000099055×1
  • 375000124592Price
    SWITCH-ROTARY 3-POSITION - 5000124592×1
  • 385000010884Price
    NUT M12 8,HEX - 5000010884×4
  • 395000096903Price
    Cover - 5000096903×1
  • 405000045129Price
    KEY-IGNITION SWITCH - 5000045129×2
  • 415000097657Not stocked
    Ignition starter switch×1
  • 425000094674Price
    CAP-PROTECTIVE COVER,IGN.KEY - 5000094674×2
  • 435000011535Price
    SCREW M10 X 25 SOC.HD. - 5000011535×4
  • 445000106638Price
    Housing - 5000106638×1
  • 455000011571Not stocked
    Cheese head screw×2
  • 465000098655Price
    SENSOR-INFARED,CPT. - 5000098655×1
  • 475000011052Price
    PLUG M22 X 1.5 - 5000011052×1
  • 485000012084Price
    SEAL-RING 22 X 29 - 5000012084×1
  • 495000048930Price
    ADAPTER - 5000048930×1
  • 505000010883Price
    NUT M10 8,HEX - 5000010883×3
  • 515000069908Price
    GUIDE HANDLE - 5000069908×1
  • 525000069883Price
    Washer - 5000069883×2
  • 535000033988Price
    WASHER-LOCK 10 - 5000033988×2
  • 545000013565Price
    SCREW M10 X 65 SOC.HD - 5000013565×2
  • 555000011522Price
    SCREW M16 X 35 HX.HD. - 5000011522×4
  • 565000021988Price
    WASHER-LOCK HS16,HIGH TENSION - 5000021988×4
  • 575000124591Not stocked
    Information sign×1
