DPU7060RC-VIBROPLATE,DIESEL,RC

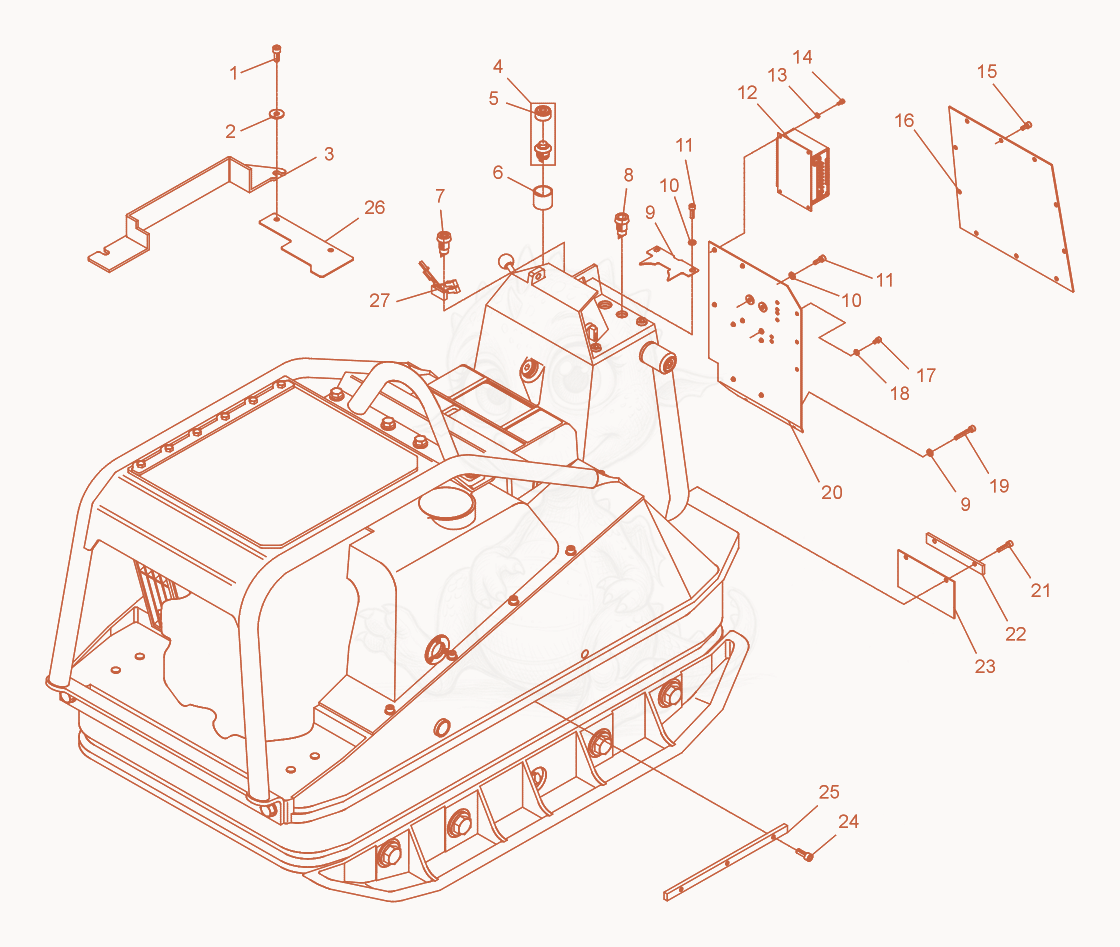

DPU7060RC Vibratory Plate cpl. Diagram

Exploded parts diagram of the Vibratory Plate cpl. of a Wacker Neuson DPU7060RC, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000011543Price
    SCREW M8 X 20 SOC.HD. - 5000011543×4
  • 25000010374Price
    WASHER B8.4 FLAT - 5000010374×4
  • 35000048842Price
    BELTGUARD - 5000048842×1
  • 45000044682Price
    SWITCH-PUSH BUTTON - 5000044682×3
  • 55000094711Not stocked
    Cap×3
  • 65000106513Price
    Sleeve - 5000106513×1
  • 75000129797Price
    LIGHT-IGNITION PILOT LED - 5000129797×1
  • 85000129799Price
    LIGHT-PILOT LED - 5000129799×1
  • 95000098653Price
    Plate - 5000098653×1
  • 105000010624Price
    WASHER B6.4 FLAT - 5000010624×6
  • 115000011553Price
    SCREW M6 X 16 SOC.HD. - 5000011553×4
  • 125000098643Price
    MODULE-DECODER,INFARED - 5000098643×1
  • 135000010628Not stocked
    Flat washer×6
  • 145000011573Price
    SCREW M4 X 8 SOC.HD. - 5000011573×4
  • 155000011554Price
    SCREW M6 X 12 SOC.HD. - 5000011554×10
  • 165000094184Price
    COVER-PLATE - 5000094184×1
  • 175000049190Price
    SCREW M5 X 8 SOC.HD. - 5000049190×2
  • 185000010625Price
    WASHER B5.3 FLAT - 5000010625×2
  • 195000011548Price
    SCREW M6 X 35 SOC.HD. - 5000011548×2
  • 205000094453Price
    plate - 5000094453×1
  • 215000011550Price
    SCREW M6 X 25 SOC.HD. - 5000011550×2
  • 225000039206Price
    PLATE-STRIP - 5000039206×1
  • 235000043478Price
    COVER - 5000043478×1
  • 245000103962Price
    SCREW M8X18 SOC.HD. - 5000103962×6
  • 255000097110Price
    MOUNTING STRIP - 5000097110×2
  • 265000125796Not stocked
    Plate×1
  • 275000201046Not stocked
    Adapter Plug×1
