DPU6055-VIBROPLATE

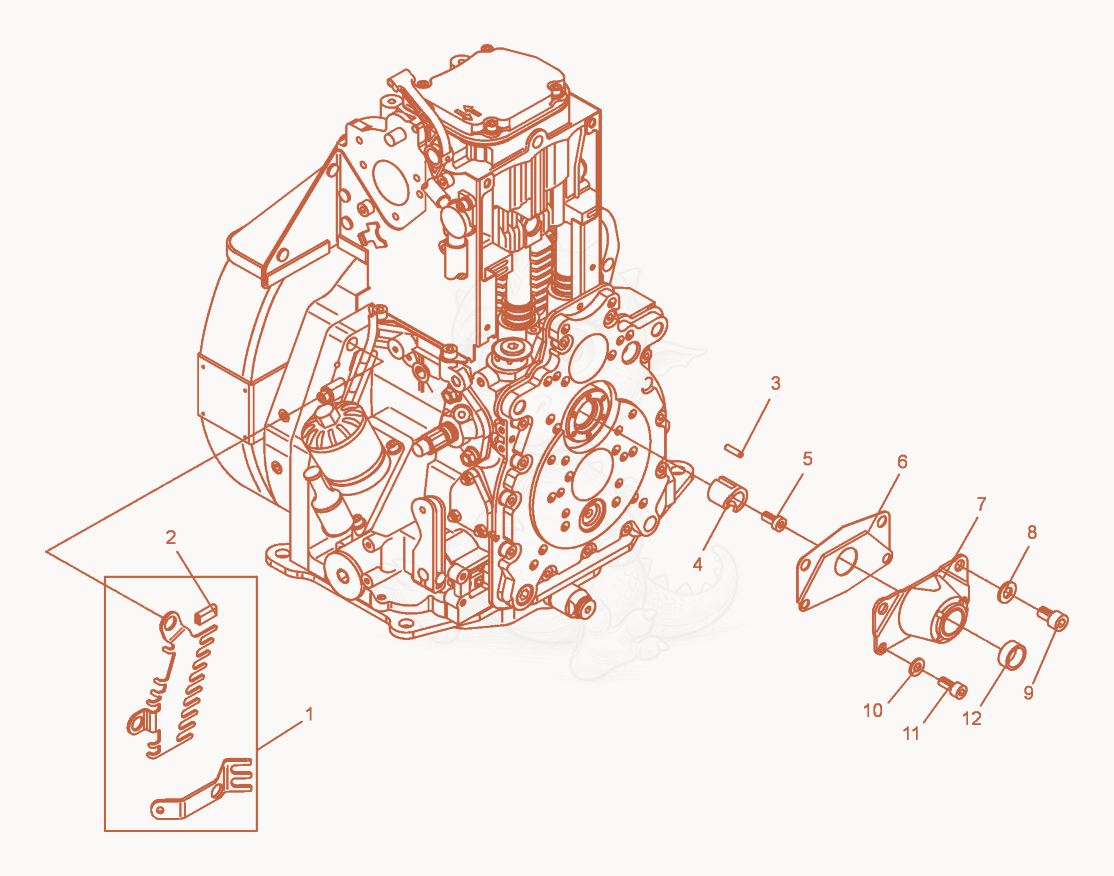

DPU6055 Stone Guard-Guiding Sleeve Diagram

Exploded parts diagram of the Stone Guard-Guiding Sleeve of a Wacker Neuson DPU6055, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000099508Not stocked
    Stone guard×1
  • 25000104421Not stocked
    Profiled joint×1
  • 35000097418Price
    PIN-CYLINDRICAL - 5000097418×1
  • 45000097419Price
    Starting Jaw - 5000097419×1
  • 55000011265Price
    SCREW M8 X 16 SOC.HD. - 5000011265×1
  • 65000095040Price
    PLATE-PROTECTIVE GUARD - 5000095040×1
  • 75000095041Price
    GUIDE-STARTING CRANK - 5000095041×1
  • 85000010621Price
    WASHER B10.5 FLAT - 5000010621×2
  • 95000011533Price
    SCREW M10 X 35 SOC.HD. - 5000011533×2
  • 105000010622Price
    WASHER-FLAT,M8,ZINC - 5000010622×2
  • 115000011540Price
    SCREW M8 X 35 SOC.HD. - 5000011540×2
  • 125000102034Not stocked
    DU-bush×1
