DPU6055-VIBROPLATE

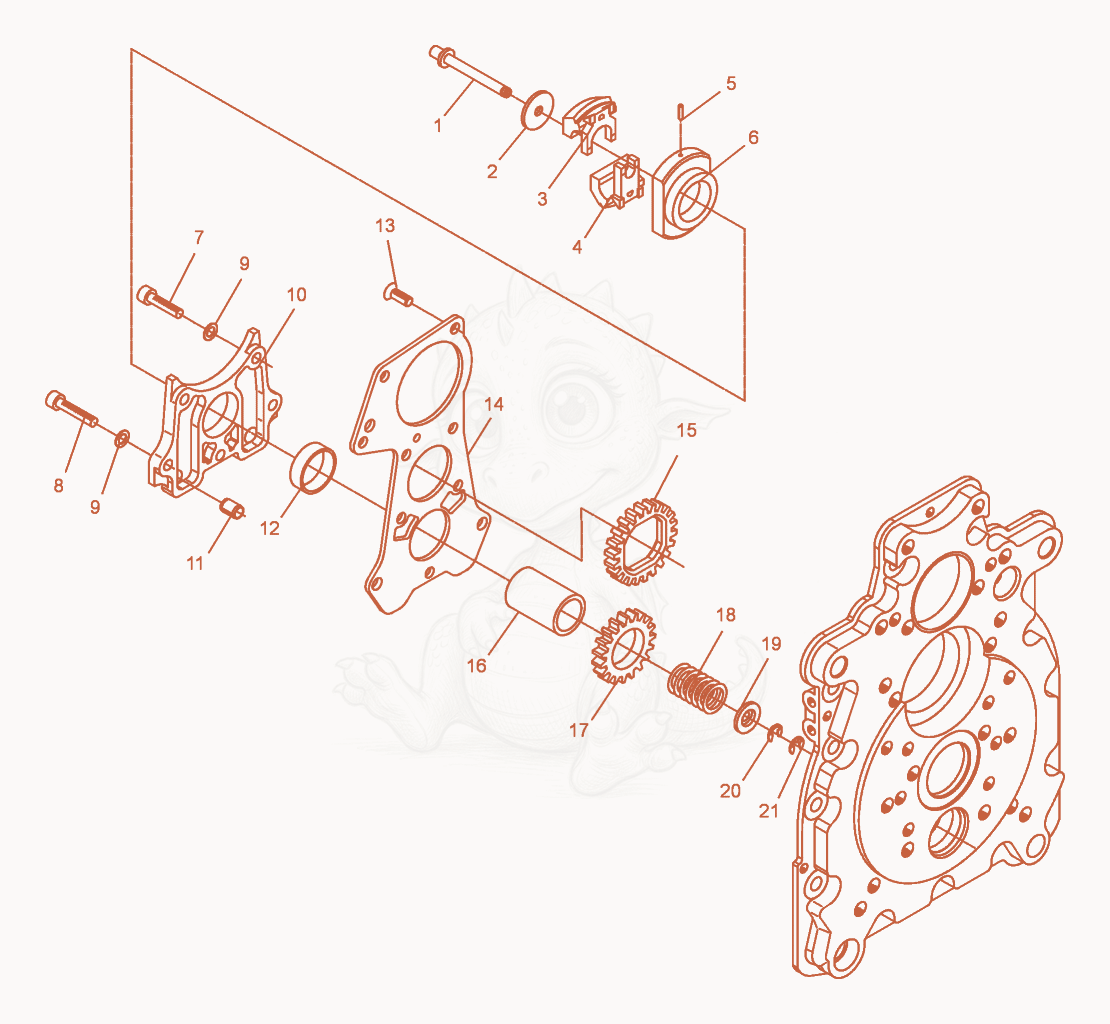

DPU6055 Centrifugal Weight-Bearing Flange Diagram

Exploded parts diagram of the Centrifugal Weight-Bearing Flange of a Wacker Neuson DPU6055, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000094990Price
    Bolt - 5000094990×1
  • 25000094991Price
    Washer - 5000094991×1
  • 35000094992Price
    WEIGHT-CENTRIFUGAL - 5000094992×1
  • 45000094993Not stocked
    Weight×1
  • 55000094994Price
    SLEEVE-DOWEL - 5000094994×2
  • 65000094995Not stocked
    Bracket×1
  • 75000011550Price
    SCREW M6 X 25 SOC.HD. - 5000011550×3
  • 85000011549Price
    SCREW M6 X 30 SOC.HD. - 5000011549×2
  • 95000012971Price
    WASHER-LOCK A6 - 5000012971×5
  • 105000094996Not stocked
    Bearing flange×1
  • 115000094997Not stocked
    Spring dowel sleeve×2
  • 125000094998Price
    BEARING-SLIDE - 5000094998×1
  • 135000095000Price
    SCREW-COUNTERSINK - 5000095000×5
  • 145000094999Price
    COVER-FLANGE - 5000094999×1
  • 155000106531Price
    Gear Wheel - 5000106531×1
  • 165000095002Price
    BUSHING-BEARING - 5000095002×1
  • 175000106532Price
    Gear Wheel - 5000106532×1
  • 185000095004Price
    Spring - 5000095004×1
  • 195000095005Price
    HOLDER-SPRING - 5000095005×1
  • 205000099416Price
    WASHER 0.5MM - 5000099416×1
  • 215002004956Price
    RET.RING-EXT 5MM,E-TYP - 5002004956×1
