DPU6055-VIBROPLATE

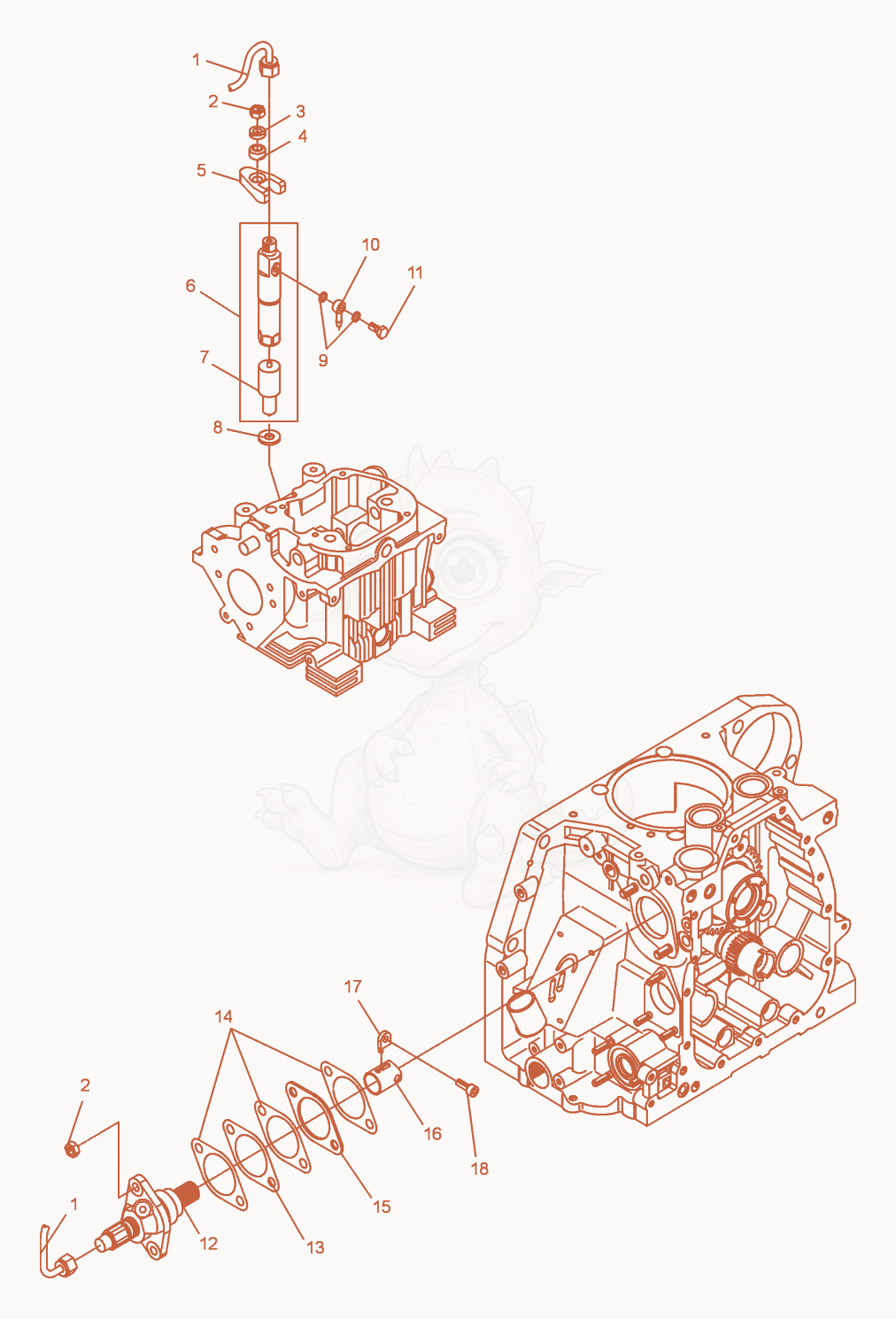

DPU6055 Injection Valve-Injection Pump Diagram

Exploded parts diagram of the Injection Valve-Injection Pump of a Wacker Neuson DPU6055, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000126520Price
    PIPE-PRESSURE - 5000126520×1
  • 25000010882Price
    NUT M8 8,HEX - 5000010882×2
  • 35000012397Price
    WASHER-LOCK B8 - 5000012397×1
  • 45000095021Price
    DISC-BALL - 5000095021×1
  • 55000095022Price
    HOLDER - 5000095022×1
  • 65000126521Price
    VALVE-INJECTION ASSY - 5000126521×1
  • 75000126522Not stocked
    Jet×1
  • 85000104411Price
    Gasket - 5000104411×1
  • 95000013440Price
    SEAL-RING 6.5 X 9.5 - 5000013440×2
  • 105000095020Price
    FITTING - 5000095020×1
  • 115000095019Price
    SCREW-HOLLOW - 5000095019×1
  • 125000126523Price
    PUMP-INJECTION - 5000126523×1
  • 135000014479Price
    SHIM-0.1MM - 5000014479Unknown×1
  • 135000014480Not stocked
    Shim×1
  • 135000014481Not stocked
    Shim×1
  • 135000014482Price
    SHIM-0.3MM - 5000014482Unknown×1
  • 135000014483Not stocked
    Shim×1
  • 145000099419Price
    GASKET,0.10 - 5000099419×2
  • 155000126524Price
    shim - 5000126524×1
  • 165000126525Price
    TAPPET - 5000126525×1
  • 175000126526Price
    guide - 5000126526×1
  • 185000011553Price
    SCREW M6 X 16 SOC.HD. - 5000011553×1
