vibration plate DPU 4045Y

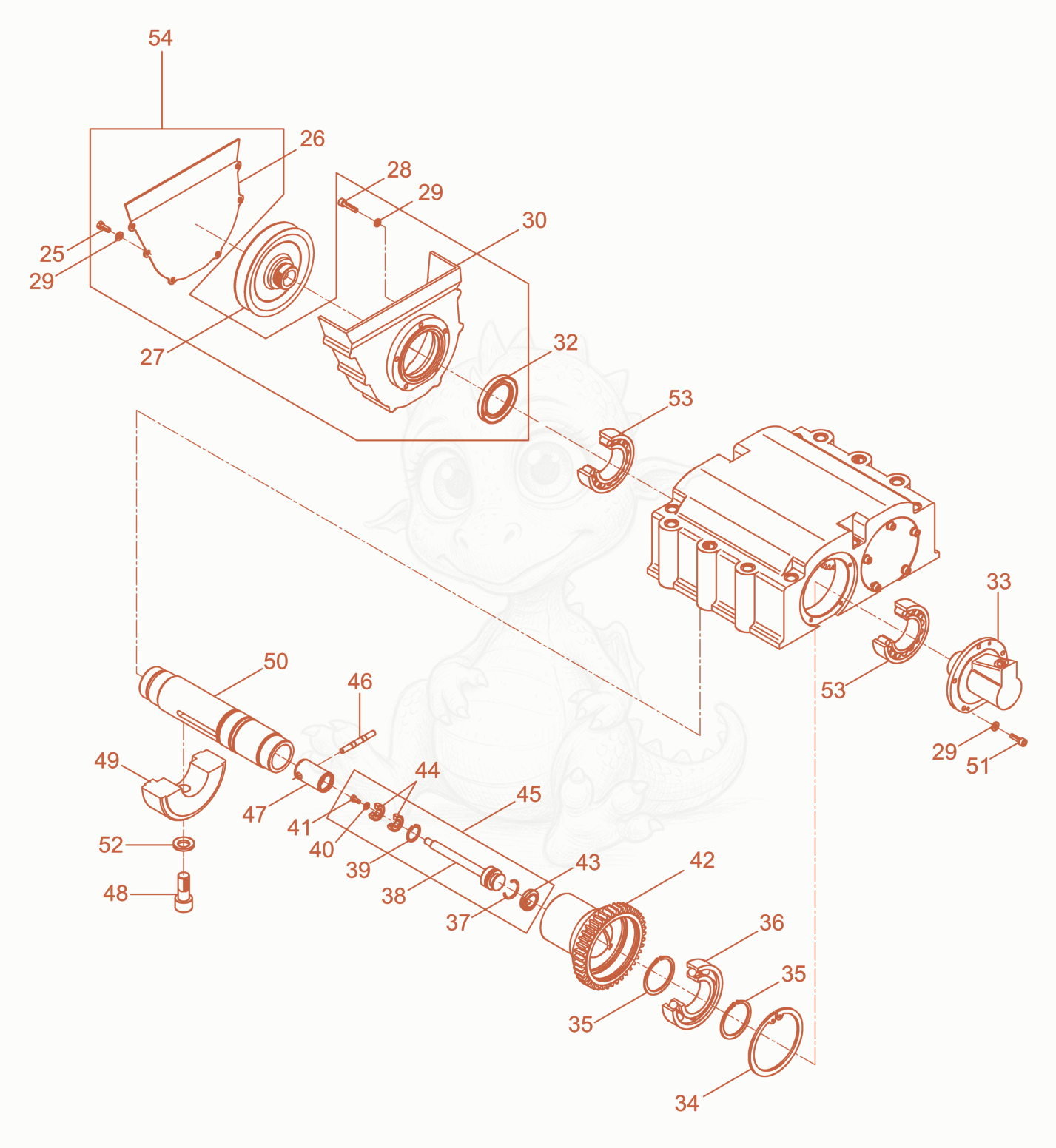

DPU4045Y Exciter cpl. Diagram

Exploded parts diagram of the Exciter cpl. of a Wacker Neuson DPU4045Y, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 255000014663Price
    SCREW M6 X 16 HX.HD. - 5000014663×6
  • 265000102721Price
    PLATE-COVER - 5000102721×1
  • 275000200563Price
    PULLEY,V-BELT - 5000200563×1
  • 285000011550Price
    SCREW M6 X 25 SOC.HD. - 5000011550×5
  • 295000010624Price
    WASHER B6.4 FLAT - 5000010624×16
  • 305000102724Price
    BELTGUARD - 5000102724×1
  • 325000048854Price
    SEAL-SHAFT 48 X 72 X 7,4B - 5000048854×1
  • 335000048604Price
    COVER - 5000048604×1
  • 345002001725Price
    RET.RING-INT 100MMX3MM, - 5002001725×1
  • 355002004822Price
    RET.RING-EXT 55MMX2MM, - 5002004822×2
  • 365000046366Price
    BEARING-RADL BALL 6211 - 5000046366×1
  • 375002006991Price
    O-RING 24 X 3-70 Sh - 5002006991×1
  • 385000105206Price
    PISTON - 5000105206×1
  • 395000037136Price
    RET.RING-INT 24MMX1.2MM, - 5000037136×1
  • 405000010624Price
    WASHER B6.4 FLAT - 5000010624×1
  • 415000012356Price
    SCREW M6 X 10 HX.HD. - 5000012356×1
  • 425000046363Not stocked
    Adjusting sleeve×1
  • 435000043203Price
    Lip seal ring 30x20x6,5 - 5000043203×1
  • 445000105193Price
    BEARING-RADIAL BALL - 5000105193×2
  • 455000105195Price
    PISTON BOLT ASSY.COMPL. - 5000105195×1
  • 465000043382Price
    PIN - 5000043382×1
  • 475000048546Price
    PIN - 5000048546×1
  • 485000018224Not stocked
    Cheese head screw×2
  • 495000099646Price
    Eccentric Weight - 5000099646×2
  • 505000129858Price
    SHAFT-EXCITER NO. 2 - 5000129858×1
  • 515000011551Price
    SCREW M6 X 20 SOC.HD. - 5000011551×5
  • 525000021988Price
    WASHER-LOCK HS16,HIGH TENSION - 5000021988×2
  • 535000103469Price
    BEARING-CYL.RLR,NJ2210-ECP-C4 - 5000103469×2
  • 545000212643Price
    BOX-COMPLETE,PROTECTIVE - 5000212643×1
