vibration plate DPU 4045Y

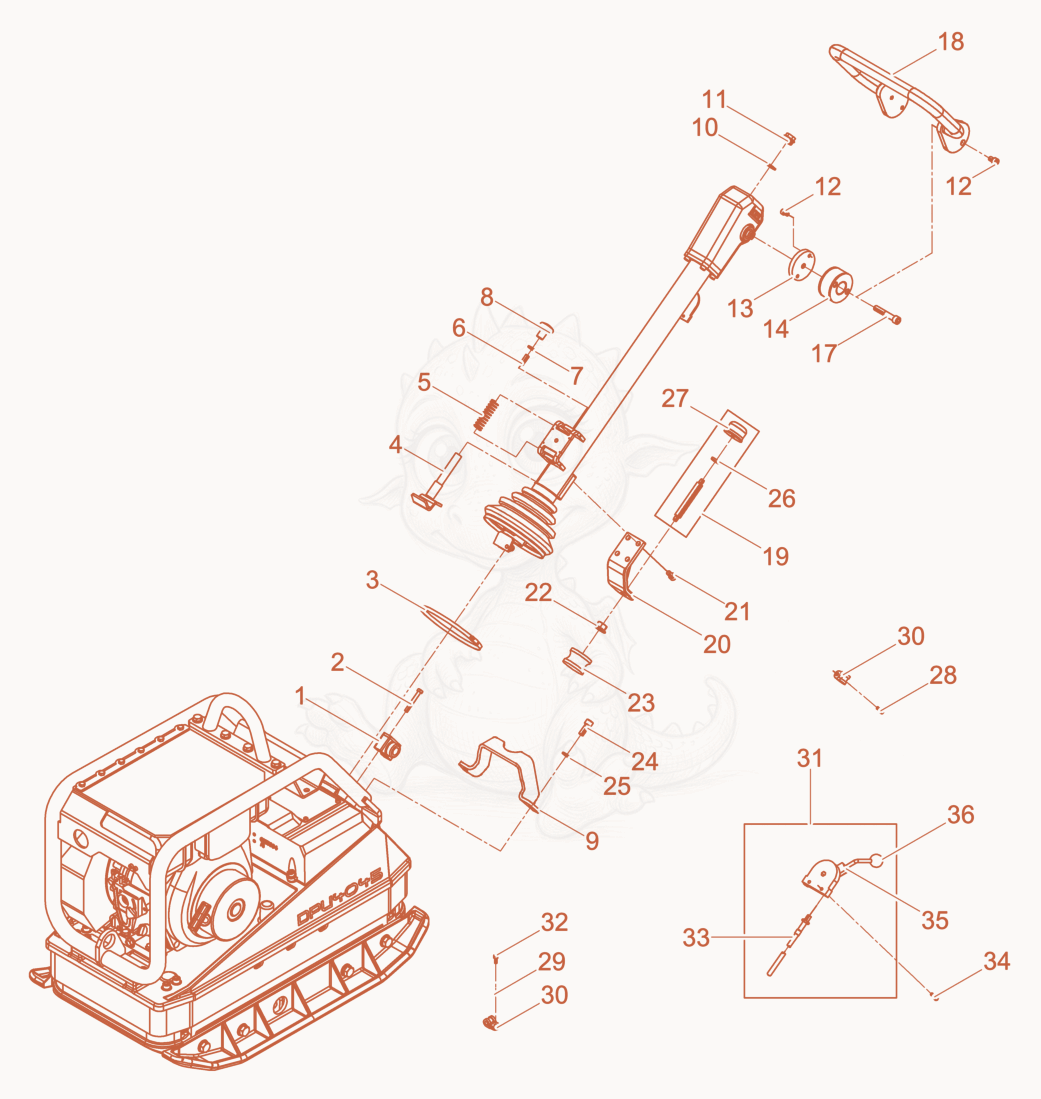

DPU4045Y Vibratory Plate cpl. Diagram
- 15000039125Not stockedFixing device cpl.×2
- SCREW M8 X 60 HX.HD. - 5000011345×4
- CLAMP 160-180/9 SKZ W1 - 5000045109×1
- PIN-RETAINING - 5000200603×1
- SPRING D-210 COMPRESS. - 5000033477×1
- SCREW-SET M10 X 30 SOC. - 5000045170×1
- WASHER R11 - 5000012976×1
- HANDLE - 5000033621×1
- Bracket - 5000209142×1
- SEAL-RING 26 X 31 - 5000032006×1
- PLUG M26 X 1.5 HX.HD. - 5000024838×1
- SCREW M8X12 SOC.HD - 5000013574×8
- SHIM - 5000108437×2
- Shockmount - 5000215031×2
- SCREW M12 X 45 SOC.HD GR8.8 - 5000011526×2
- Clamp - 5000214991×1
- 195000043928Not stockedThreaded spindle cpl.×1
- ANGLE - 5000201983×1
- SCREW M10 X 25 SOC.HD. - 5000011535×4
- hexagon nut - 5000202866×1
- SHOCKMOUNT 60 X 40-40SH,FORM E - 5000043233×1
- X-0017087 SCREW M12 X 30 - 5000018087×2
- WASHER-LOCK HS12,HIGH TENSION - 5000021465×2
- WASHER 10.5 FLAT - 5000017091×1
- SHOCKMOUNT - 5000127085×1
- SCREW M6 X 16 SOC.HD. - 5000011553×3
- WASHER B6.4 FLAT - 5000010624×1
- CLAMP-PIPE - 5000096691×4
- LEVER-OPERATING - 5000204556×1
- SCREW M6 X 16 SOC.HD. - 5000011553×1
- 335000210453Not stockedControl×1
- SCREW M6 X 22 SOC.HD. - 5000012373×2
- LEVER-THROTTLE CONTROL - 5000105950×1
- KNOB - 5000103942×1
