vibration plate DPU 4045Y

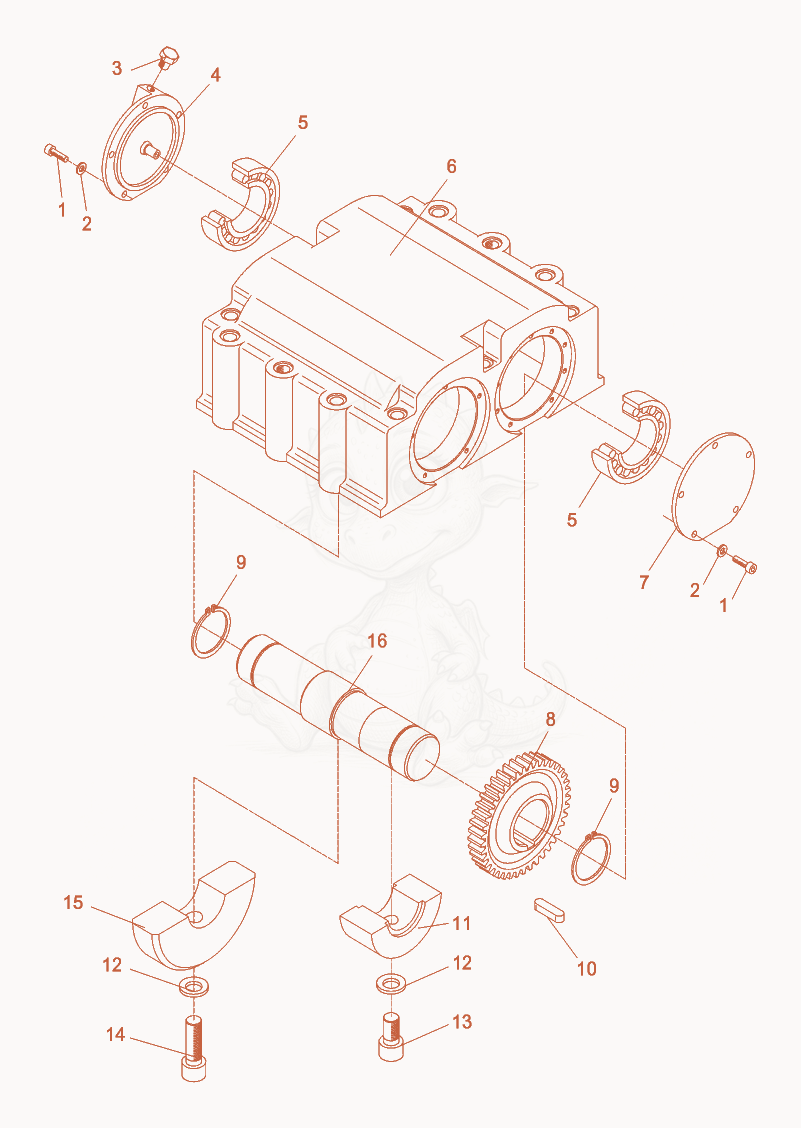

DPU4045Y Exciter cpl. Diagram

Exploded parts diagram of the Exciter cpl. of a Wacker Neuson DPU4045Y, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000011551Price
    SCREW M6 X 20 SOC.HD. - 5000011551×10
  • 25000010624Price
    WASHER B6.4 FLAT - 5000010624×10
  • 35001103030Price
    SCREW - 5001103030×1
  • 45000102144Price
    COVER-VENTED - 5000102144×1
  • 55000103469Price
    BEARING-CYL.RLR,NJ2210-ECP-C4 - 5000103469×2
  • 65000099059Price
    HOUSING-EXCITER - 5000099059×1
  • 75000039110Price
    Cover - 5000039110×1
  • 85000039116Not stocked
    Gear wheel×1
  • 95002006113Price
    RET.RING-EXT 50MMX2MM, - 5002006113×2
  • 105002001399Price
    KEY A10 X 8 X 30 - 5002001399×1
  • 115000126262Price
    ECCENTRIC WEIGHT - 5000126262×2
  • 125000021988Price
    WASHER-LOCK HS16,HIGH TENSION - 5000021988×3
  • 135000044634Price
    SCREW M16 X 30 SOC.HD. - 5000044634×2
  • 145000043812Price
    SCREW M16 X 50 10.9,SOC - 5000043812×1
  • 155000205375Price
    WEIGHT-EXCITER - 5000205375×1
  • 165000046359Price
    SHAFT-EXCITER NO.1 - 5000046359×1
