DPU4045H-VIBROPLATE,DIESEL

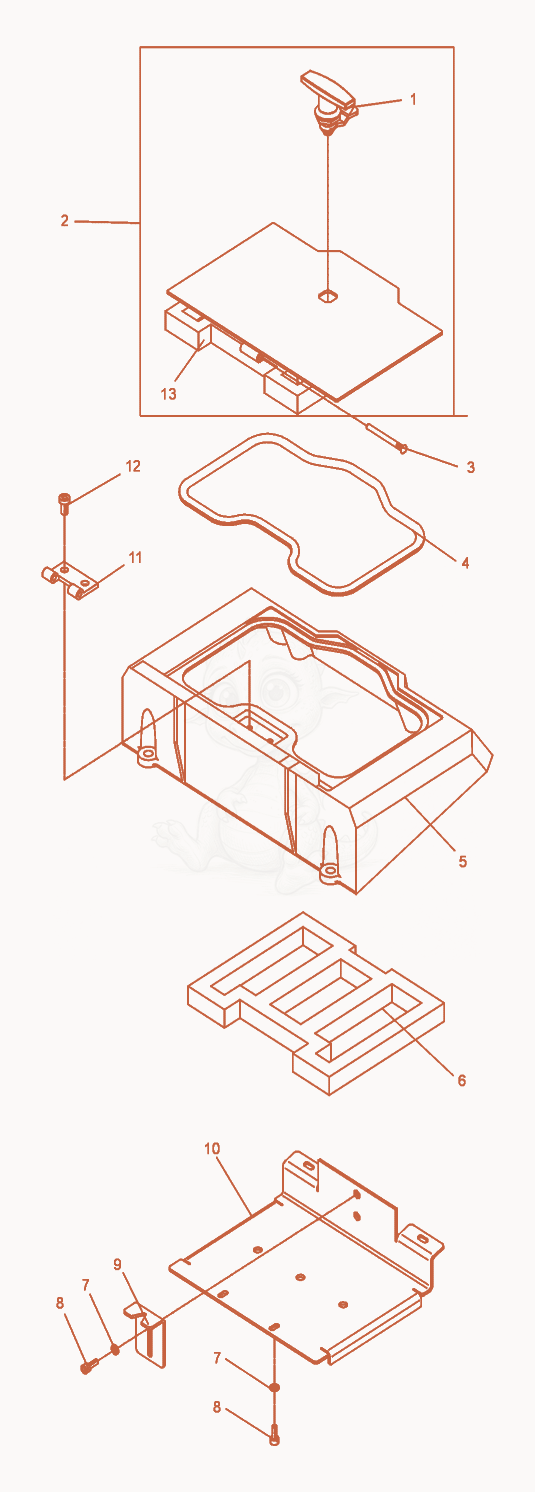

DPU4045H Crank Protection Diagram

Exploded parts diagram of the Crank Protection of a Wacker Neuson DPU4045H, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000127930Price
    handle - 5000127930×1
  • 25000127928Price
    COVER - 5000127928×1
  • 35000102313Not stocked
    Bolt×1
  • 45000105462Not stocked
    Rubber profile×1
  • 55000105431Price
    BOX-SIDE,CRANK PROTECTION - 5000105431×1
  • 65000105455Price
    PAD-INSULATING - 5000105455×1
  • 75000010624Price
    WASHER B6.4 FLAT - 5000010624×6
  • 85000011553Price
    SCREW M6 X 16 SOC.HD. - 5000011553×6
  • 95000201052Price
    LATCH-BOTTOM - 5000201052×1
  • 105000105524Not stocked
    Bottom sheet×1
  • 115000102312Not stocked
    Strap hinge×1
  • 125000011263Price
    SCREW M8 X 20 SOC.HD. - 5000011263×2
  • 135000201521Price
    PAD-INSULATING - 5000201521×1
