DPU4045H-VIBROPLATE,DIESEL

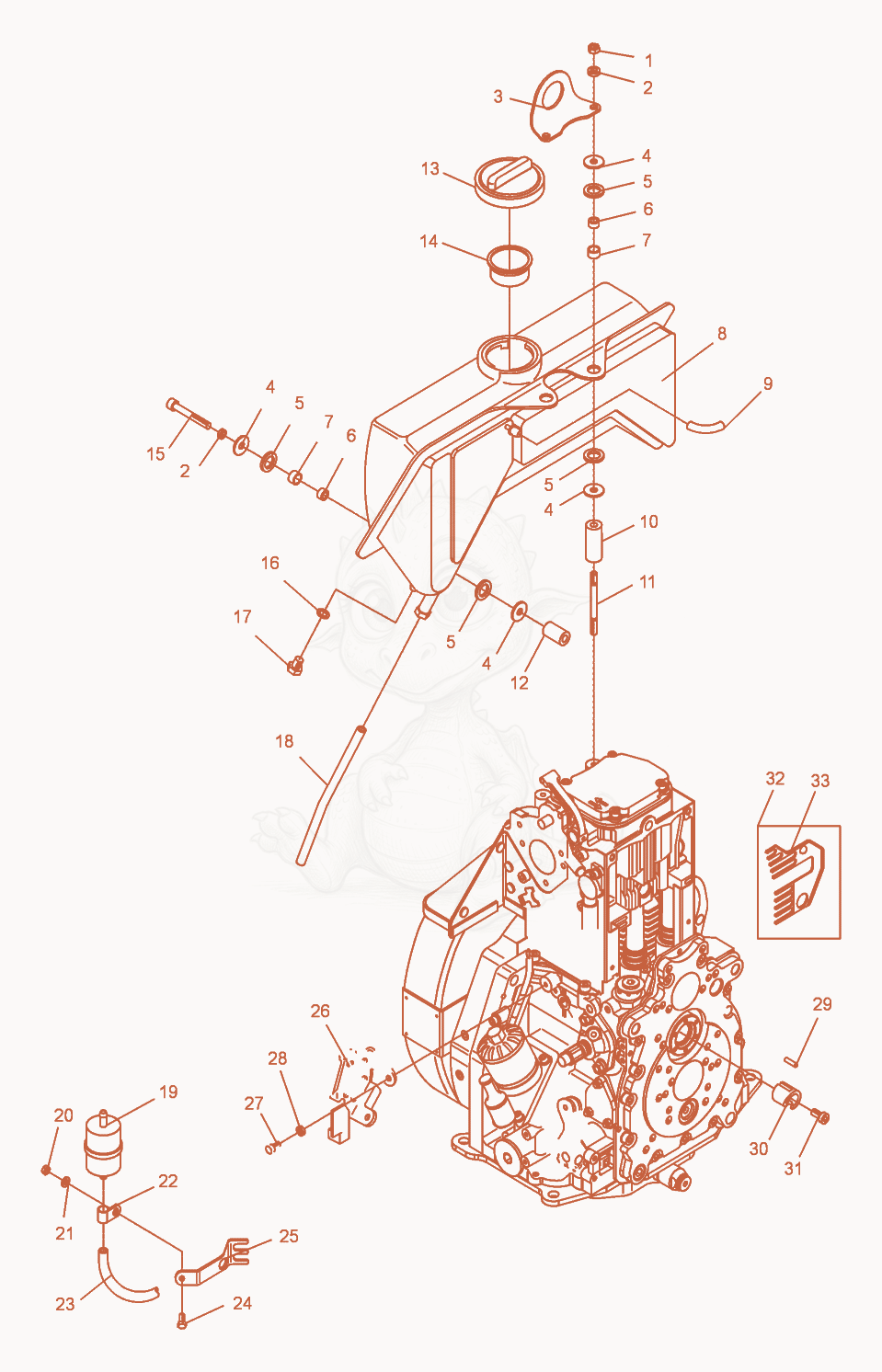

DPU4045H Fuel Tank Diagram
- NUT M8 8,HEX - 5000010882×2
- WASHER-LOCK B8 - 5000012397×4
- LIFTING EYE - 5000104439×1
- WASHER B8.4 FLAT - 5000010374×8
- WASHER-RUBBER - 5000095355×8
- BUSHING - 5000095356×4
- SLEEVE-RUBBER - 5000095357×4
- TANK-FUEL - 5000104440×1
- HOSE 40MM - 5000104444×1
- BUSHING - 5000104441×2
- STUD M8 X 75 - 5000031063×2
- BUSHING - 5000104443×2
- CAP-FUEL TANK COVER, 40MM DIA. - 5004105170×1
- 145000104442Not stockedStrainer×1
- SCREW M8 X 65 SOC.HD. - 5000012378×2
- SEAL-RING 10 X 16 - 5000013442×1
- SCREW M10 X 12 HX.HD. - 5000023405×1
- 185000106560Not stockedFuel Pipe×1
- FILTER-ENGINE FUEL,DIESEL - 5000022832×1
- NUT M6 8,HEX - 5000010880×1
- WASHER B6.4 FLAT - 5000010624×1
- CLAMP - 5000023039×1
- HOSE 305MM - 5000104447×1
- SCREW M6 X 12 HX.HD. - 5000012357×1
- GUARD-STONE - 5000104446×1
- GUARD-STONE - 5000104448×1
- SCREW M6 X 12 SOC.HD. - 5000011554×1
- WASHER-LOCK B6 - 5000010649×1
- PIN-CYLINDRICAL - 5000097418×1
- Starting Jaw - 5000097419×1
- SCREW M8 X 16 SOC.HD. - 5000011265×1
- cover - 5000107495×1
- 335000107493Not stockedBlind grommet×1
