DPU4045H-VIBROPLATE,DIESEL

DPU4045H Fuel Pipe Diagram

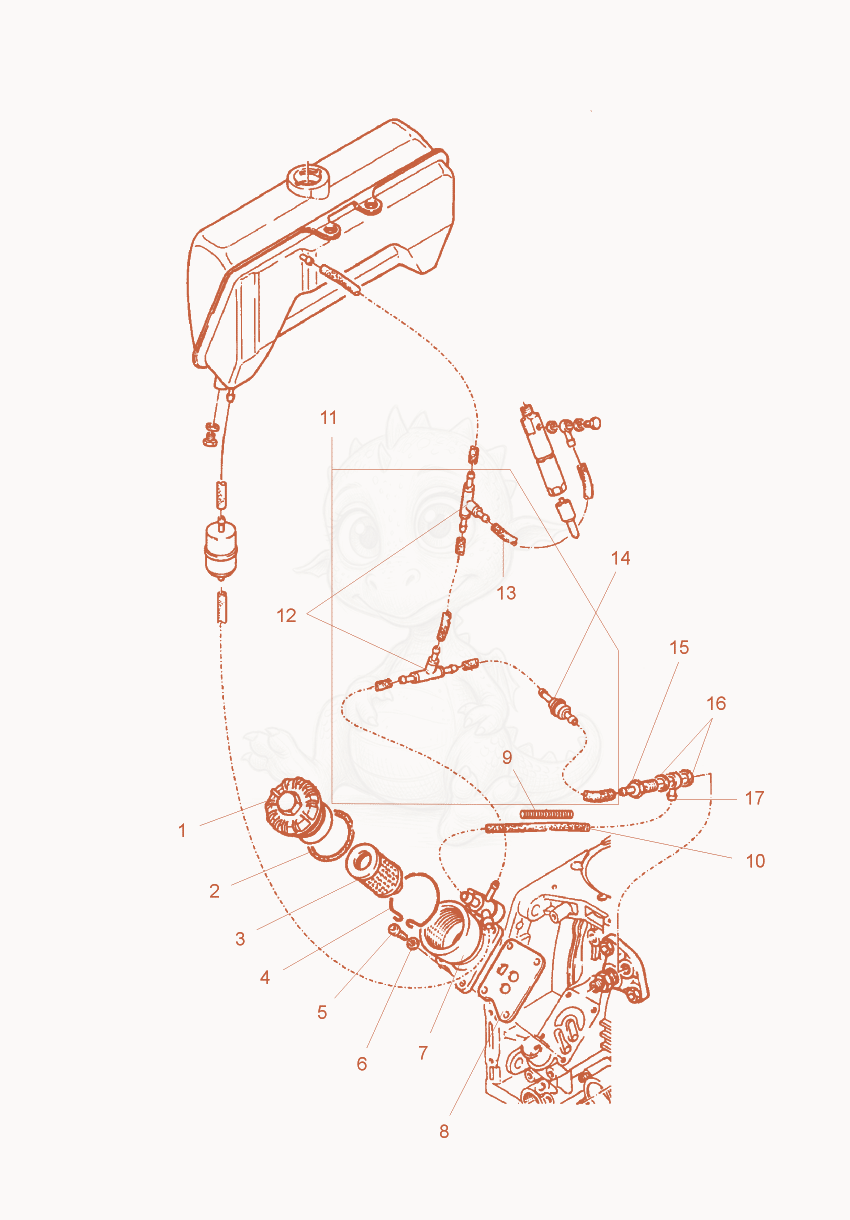

Exploded parts diagram of the Fuel Pipe of a Wacker Neuson DPU4045H, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000094931Price
    COVER - 5000094931×1
  • 25000094928Price
    GASKET-OIL FILTER MOUNT - 5000094928×1
  • 35000094930Price
    ELEMENT-OIL FILTER - 5000094930×1
  • 45000104402Price
    Spring - 5000104402×1
  • 55000011551Price
    SCREW M6 X 20 SOC.HD. - 5000011551×4
  • 65000012971Price
    WASHER-LOCK A6 - 5000012971×4
  • 75000106558Not stocked
    Housing×1
  • 85000106559Price
    Seal - 5000106559×1
  • 95000106564Price
    Spring - 5000106564×1
  • 105000106560Not stocked
    Fuel Pipe×1
  • 115000106568Price
    FUEL LINE COMPL. - 5000106568×1
  • 125000106563Price
    FITTING-TEE - 5000106563×2
  • 135000095018Not stocked
    Hose×1
  • 145000106562Not stocked
    Back pressure valve×1
  • 155000047975Price
    FITTING-STRAIGHT,BARBED,HOSE - 5000047975×1
  • 165000013186Price
    SEAL-RING 12 X 15.5 - 5000013186×2
  • 175000047974Price
    FITTING-BANJO,BARBED,HOSE - 5000047974×1
