CRT36-25K-H RIDE-ON TROWEL

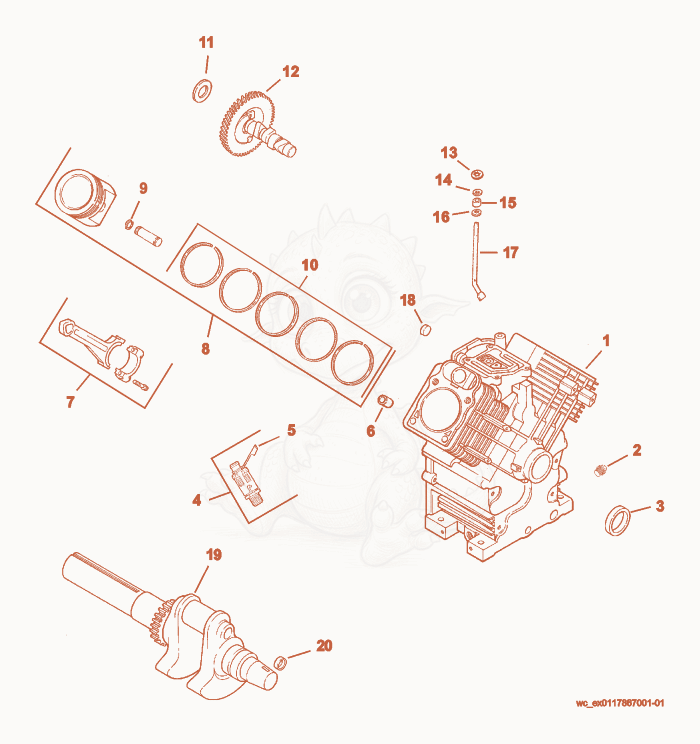

CRT36-25K-H Engine Block Diagram
- 15000154817Not stockedCrankcase×1
- PLUG-THREADED - 5000154793×1
- SEAL-OIL - 5000088710×1
- KIT-OIL DRAIN VALVE - 5000154795×1
- CAP-OIL DRAIN VALVE - 5000154796×1
- PIN-LOCATING - 5000154797×6
- Connecting Rod Set - 5000152427×2
- Connecting rod - 5000154798×1
- RING-PISTON - 5000154802×2
- RING-PISTON - 5000154803×2
- Retaining ring - 5000154804×4
- RING-PISTON SET - 5000154805×2
- SHIM-CAMSHAFT,RED - 5000154818×1
- SHIM-CAMSHAFT,GRAY - 5000154824×1
- SHIM-CAMSHAFT,GREEN - 5000154823×1
- SHIM-CAMSHAFT,YELLOW - 5000154822×1
- SHIM-CAMSHAFT,BLUE - 5000154821×1
- SHIM-CAMSHAFT,WHITE - 5000154820×1
- SHIM-CAMSHAFT,BLACK - 5000154819×1
- 125000154825Not stockedCamshaft×1
- Retaining ring - 5000154826×1
- Washer - 5000154827×1
- SEAL-GOVERNOR CROSS SHAFT - 5000154828×1
- Washer - 5000154829×1
- 175000154830Not stockedShaft×1
- PLUG-PUSH IN - 5000154792×1
- Crankshaft - 5000152424×1
- PLUG-PUSH IN - 5000154792×1
