CRT36-25K-H RIDE-ON TROWEL

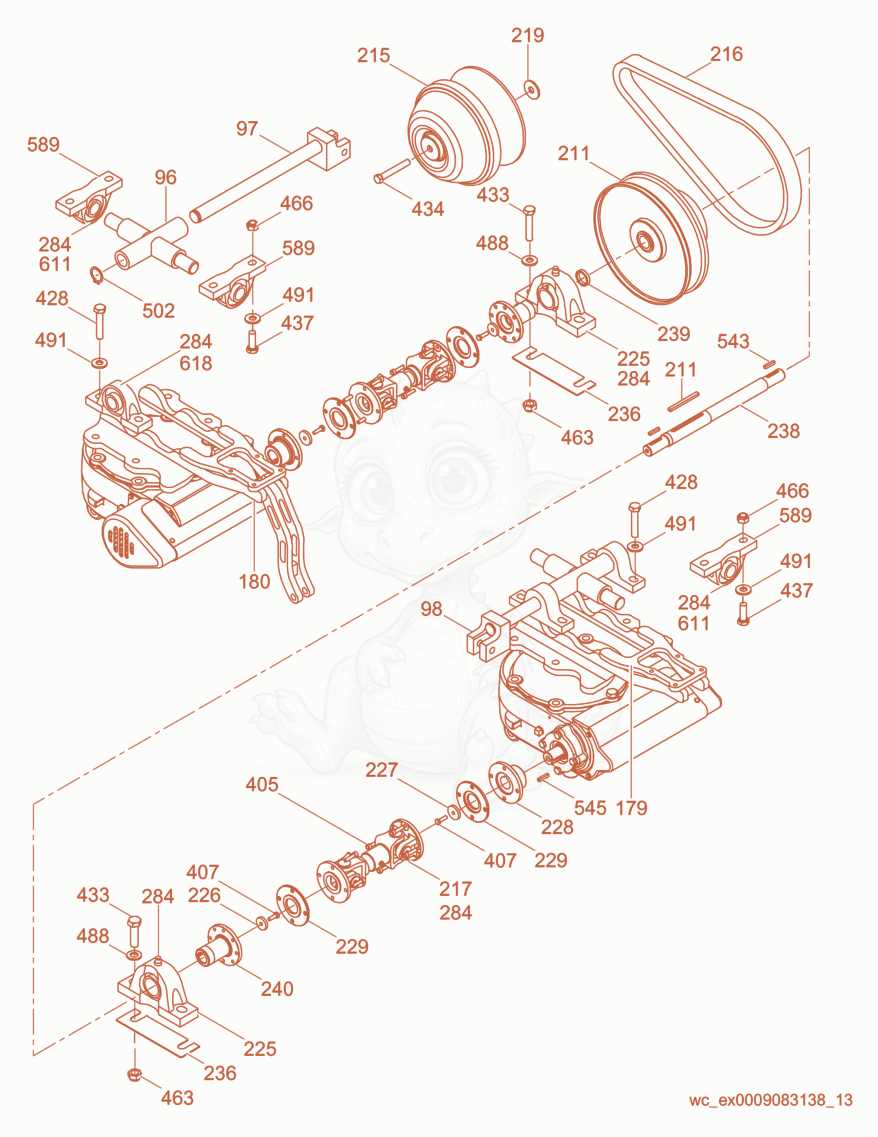

CRT36-25K-H Drive cpl. Diagram
- LEVER ASSEMBLY P-5000112007 - 5000117319×1
- 975000154671Not stockedLever×1
- 985000117648Not stockedPivot×1
- 1795000119189Not stockedBracket×1
- 1805000119190Not stockedBracket×1
- 2115000116788Not stockedClutch×1
- PLATE-CENTRIFUGAL CLUTCH - 5000154292×1
- BELT-DRIVE - 5000164291×1
- UNIVERSAL JOINT-SHORT,ASSEMBLY - 5000117999×2
- 2195000119655Not stockedShim×2
- BEARING-DRIVESHAFT - 5000117341×2
- WASHER 1 ODX.265 IDX.1795 - 5000117353×2
- WASHER 1-1/8 ODX.281 IDX.1875 - 5000117642×2
- FITTING-OUTER JOINT - 5000117628×2
- 2295000117644Not stockedShim×4
- 2365000117502Not stockedShim×4
- 2385000117344Not stockedShaft×1
- 2395000117985Not stockedSpacer×1
- FITTING-INNER JOINT - 5000117627×2
- CAP-GREASE FITTING,RED - 5000155804×14
- 4055000153076Not stockedSocket head cap screw×16
- SCREW M6 X 20 HX.HD. - 5000011470×4
- SCREW M12 X 65 HX.HD. - 5000011304×8
- SCREW M14 X 50 HX.HD. - 5000011501×4
- SCREW 7/16-20 X 3 HHCS - 5000118146×1
- 4375000011421Not stockedHexagonal head cap screw×8
- NUT-LOCK M14 CI 8,CL ZI - 5000117614×4
- NUT-LOCK M12X1.75 HEX - 5000010366×8
- WASHER M14 DIN A,CL ZIN - 5000117615×4
- WASHER B13 FLAT - 5000010620×16
- RET.RING-EXT. 1 SHAFT - 5000117362×1
- KEY-SQUARE 3/16 X 1.000 - 5000073890×2
- KEY-SQUARE 1/4 X 1 - 5000027751×2
- BEARING-GEARBOX MOUNT - 5000116780×6
- 6115000153749Not stockedGrease fitting×4
- 6185000153750Not stockedGrease fitting×2
