CRT36-25K-H RIDE-ON TROWEL

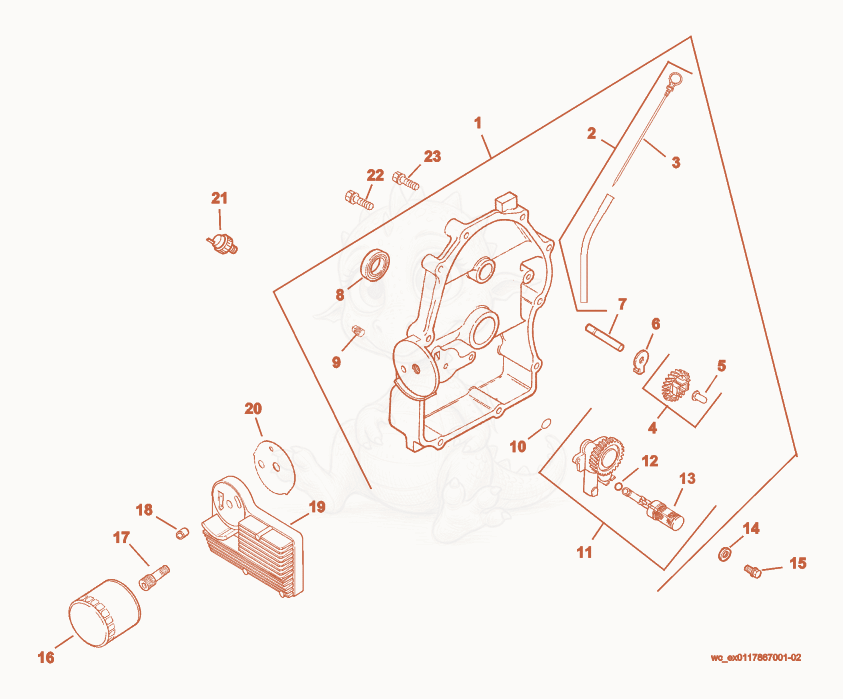

CRT36-25K-H Cover Diagram
- COVER-BEARING - 5000154832×1
- TUBE-W/DIPSTICK - 5000154833×1
- DIPSTICK - 5000152450×1
- KIT-GOVERNOR GEAR - 5000154834×1
- 55000127589Not stockedPin×1
- Lock - 5000154836×1
- 75000127586Not stockedGovernor shaft×1
- SEAL-OIL - 5000088713×1
- PLUG-THREADED - 5000154839×2
- O-ring - 5000088714×1
- 115000154841Not stockedPump×1
- O-Ring - 5000154842×1
- TUBE-OIL PICKUP - 5000154843×1
- Washer - 5000154844×2
- 155000127709Not stockedScrew×2
- FILTER-OIL - 5000127607×1
- HOLDER-OIL FILTER - 5000154846×1
- PIN-LOCATING - 5000154797×1
- 195000154848Not stockedRadiator×1
- 205000152451Not stockedGasket×1
- SWITCH-PRESSURE - 5000152428×1
- 225000127602Not stockedScrew×9
- 235000127603Not stockedScrew×1
