850 circulation Diagram

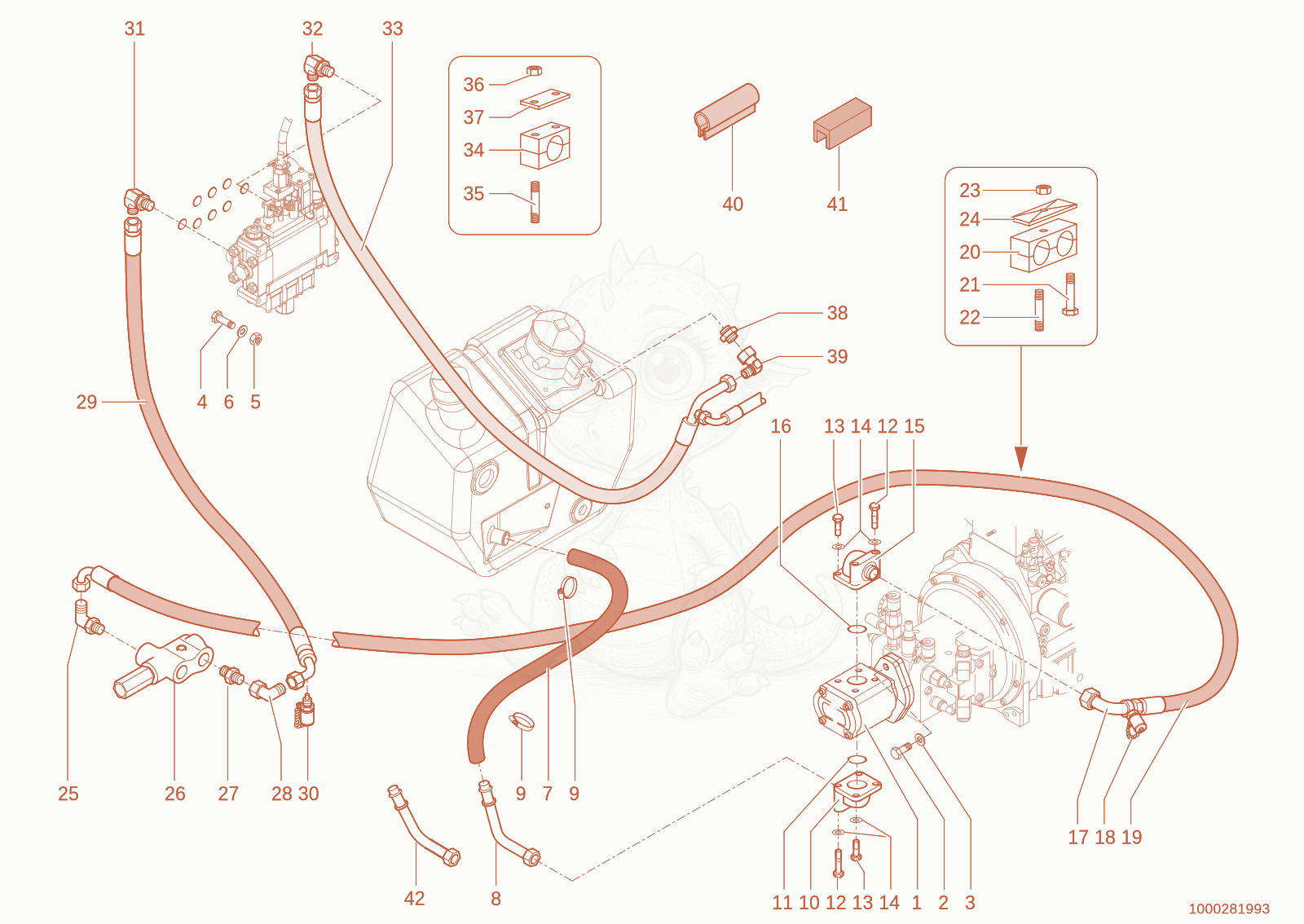

Exploded parts diagram of the circulation of a Wacker Neuson 850, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000251668Price
Hydraulicpump 1000251668×1
21000015347Not stocked
hex screw×2
31000049219Not stocked
washer×2
41000015402Not stocked
hex screw×3
51000013022Not stocked
hexagon nut×3
61000095341Price
WASHER - 1000095341×3
71000136027Price
Preshaped tube - 1000136027×1
81000109127Price
hose fitting - 1000109127×1
91000032146Price
CLAMP - 1000032146×2
101000085087Price
BFW35-L LK55 - 1000085087×1
111000249612Price
O-RING - 1000249612×1
121000048280Not stocked
cheese head screw×4
131000019450Not stocked
cheese head screw×4
141000019452Not stocked
spring washer×8
151000019449Not stocked
screw joint×1
161000249612Price
O-RING - 1000249612×1
171000136036Price
CONNECTION PIECE - 1000136036×1
181000028166Not stocked
minimess point×1
191000137399Price
Slhydr2Sc16Pp200Pn1890L28200 1000137399×1
201000031271Price
CLAMP - 1000031271×3
211000085317Price
hex screw M8x55-8.8 A2C-DIN931 - 1000085317×2
221000048894Not stocked
stud×1
231000013022Not stocked
hexagon nut×3
241000031245Not stocked
cover plate×3
251000028464Not stocked
screw joint×1
261000028006Not stocked
priority valve×1
271000015559Not stocked
screw joint×1
281000015513Not stocked
screw joint×1
291000137769Price
SLHYDR 2SC 16 PN18 45 PN18 0 L1020 0 - 1000137769×1
301000028166Not stocked
minimess point×1
311000028464Not stocked
screw joint×1
321000052154Not stocked
screw joint×1
331000174761Price
Slhydrspir25Pn200Pn28120L3170 1000174761×1
341000032250Price
CLAMP - 1000032250×3
351000048880Not stocked
stud×6
361000085588Price
self-locking nuts M6-8 A2C-DIN985 - 1000085588×6
371000099794Price
COVER PLATE - 1000099794×2
381000085107Price
GE28LR11/4EDOMDA3C - 1000085107×1
391000085091Price
EW28LOMDA3C - 1000085091×1
401000097094Price
EDGE PROTECTION - 1000097094×1
411000097120Price
profile - 1000097120×1
421000144563Price
hose fitting - 1000144563×1
