850 parking brake Diagram

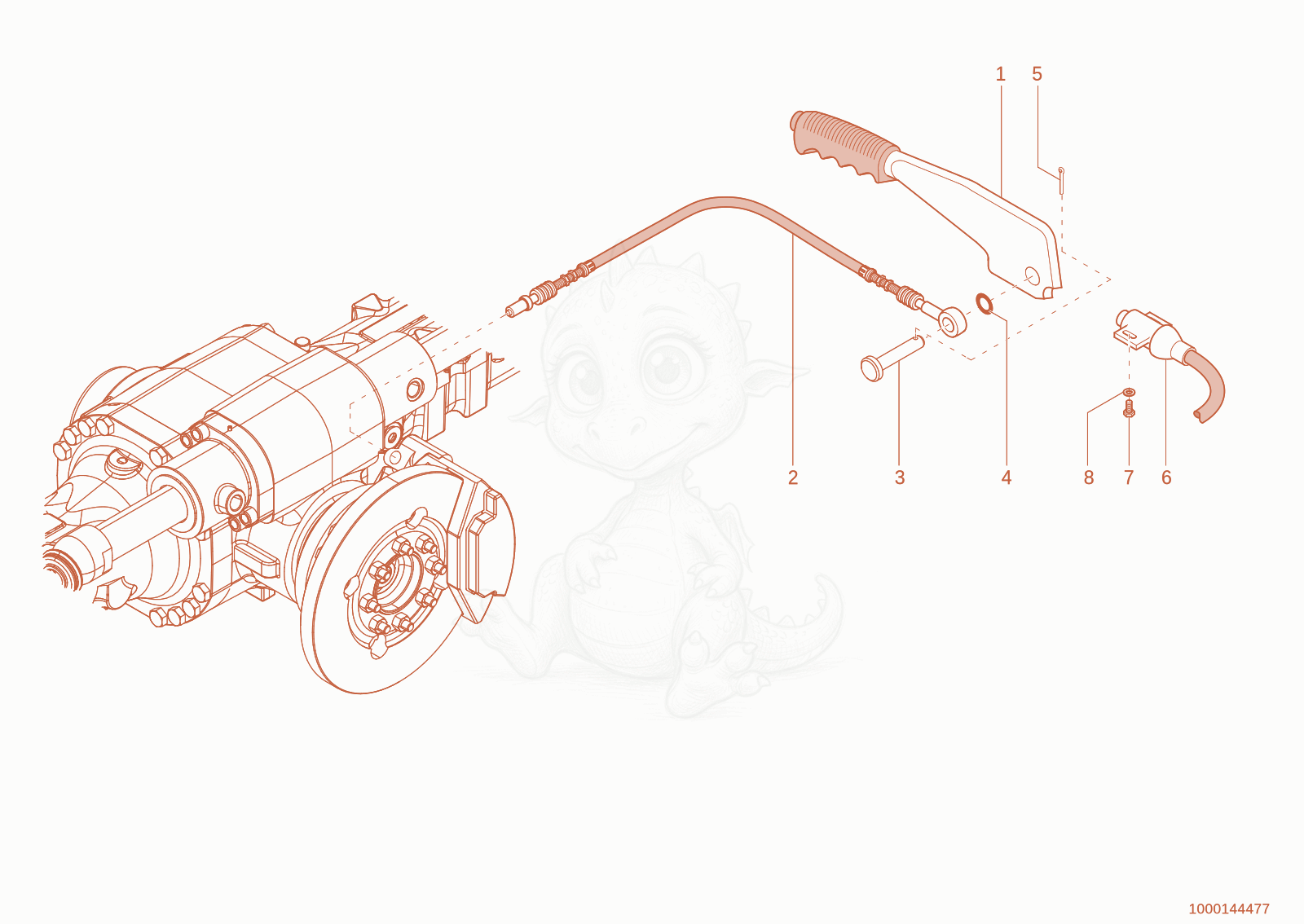

Exploded parts diagram of the parking brake of a Wacker Neuson 850, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000088091Price
Parking brake lever - 1000088091×1
21000138706Price
Cable pull - 1000138706×1
31000096028Price
PIN - 1000096028×1
41000013027Not stocked
washer×1
51000085657Price
COTTERPIN - 1000085657×1
61000051973Price
Switch - 1000051973×1
71000106693Price
CHEESE HEAD SCREW - 1000106693×2
81000092288Price
WASHER - 1000092288×2
