850 loading bucket Diagram

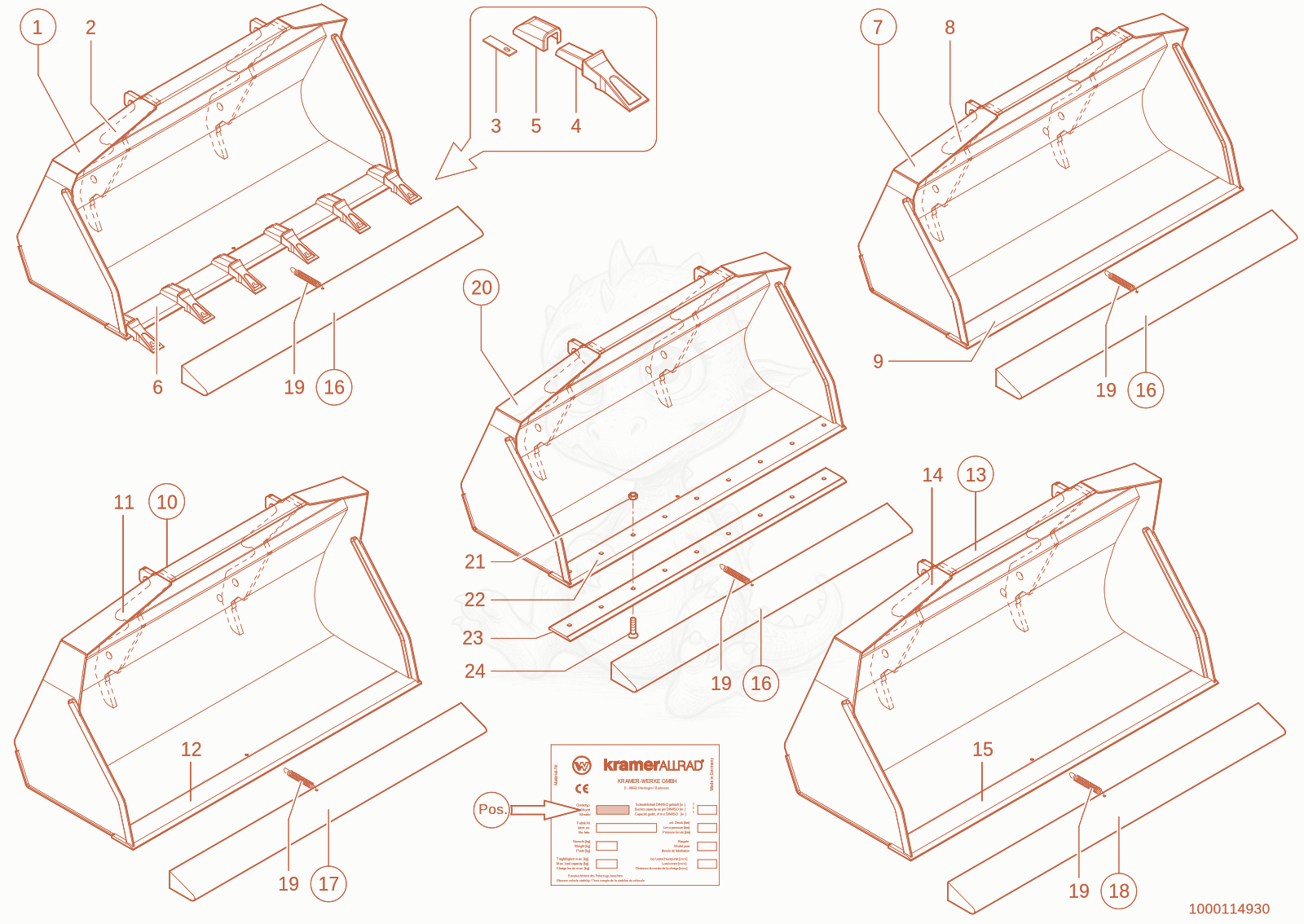

Exploded parts diagram of the loading bucket of a Wacker Neuson 850, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000096388Not stocked
Bucket (HTF) 1850 mm KRA - 0,85 m³×1
21000052738Price
JOINT - 1000052738×2
31000003990Price
LOCKING - 1000003990×5
41000017066Not stocked
ripper tooth×5
51000017065Not stocked
sleeve×5
61000054447Price
BLADE - 1000054447×1
71000096389Not stocked
PENDX-1000137538 BCKT-UTY,73×1
81000052738Price
JOINT - 1000052738×2
91000054447Price
BLADE - 1000054447×1
101000096393Not stocked
BUCKET-LIGHTWEIGHT MATERIAL×1
111000052743Not stocked
joint×2
121000054449Price
BLADE - 1000054449×1
131000096397Not stocked
Super lightw. Bucket 2150×1
141000107213Not stocked
joint×2
151000054450Price
BLADE - 1000054450×1
161000036988Not stocked
tooth protection×1
171000037103Not stocked
tooth protection×1
181000037104Not stocked
tooth protection×1
191000031051Not stocked
tension spring×1
201000137538Not stocked
Bucket (HVF) 1850 mm KRA - 0,85 m³×1
211000049096Not stocked
hexagon nut×11
221000138364Price
Blade 1000138364×1
231000138365Price
Blade 1000138365×1
241000085539Price
COUNTERSUNK SCREW - 1000085539×11
