Neuson 8002RD

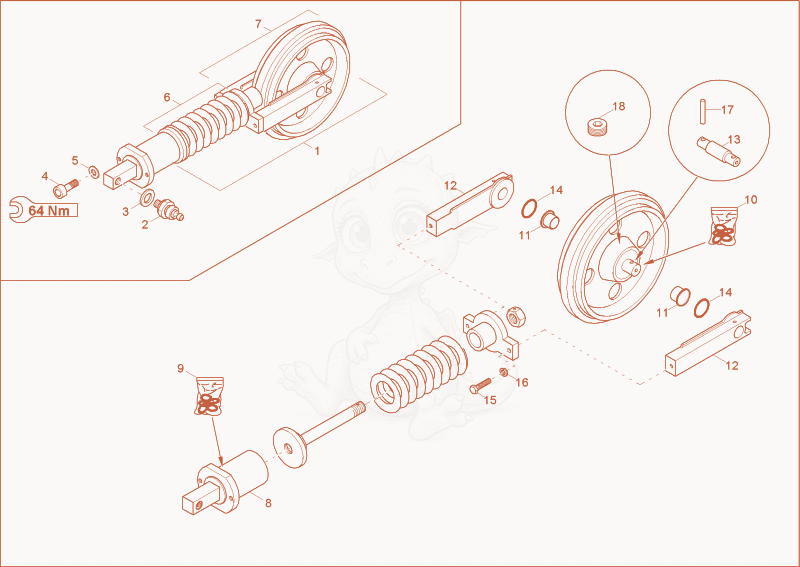

8002RD TRACK TENSIONER RUBBER-CHAIN Diagram
- Tracktensionercomplete 1000130763×2
- 21000183476Not stockednon return valve×2
- screw seal - 1000124948×2
- allen screw M12x50 10.9 - 1000085512×4
- washer 13 A2C DIN6916 - 1000082611×4
- spring assembly - 1000020143×2
- 71000130765Not stockedtension wheel×2
- Tensioncylinder 1000186355×2
- 91000019632Not stockedseal kit tension cylinder×2
- 101000012611Not stockedseal kit tension wheel×2
- BUSHING - 1000135792×4
- Bearingconsole 1000135794×4
- Shaftftensionwheel 1000135795×2
- O-RING - 1000135796×4
- HEX SCREW - 1000131690×4
- SPRING WASHER - 1000131691×4
- 171000012861Not stockedcotter pin×4
- PLUG - 1000075489×2
