Neuson 8002RD

8002RD DIESEL TANK FILLING PUMP (OPTION) Diagram

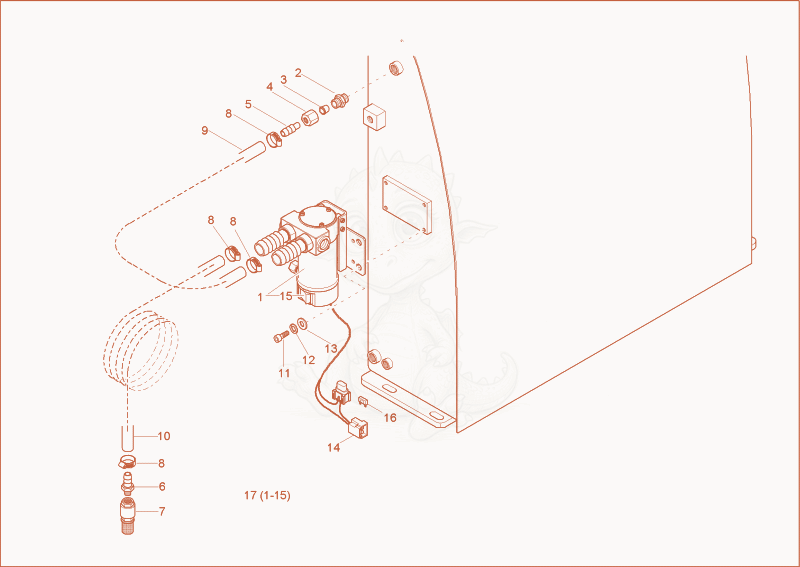

Exploded parts diagram of the DIESEL TANK FILLING PUMP (OPTION) of a Wacker Neuson 8002RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000178172Price
    Fuelpump 1000178172×1
  • 21000015492Price
    GE12LREDOMDA3C - 1000015492×1
  • 31000015484Price
    DPR12LX - 1000015484×1
  • 41000015482Not stocked
    union nut×1
  • 51000016293Not stocked
    hose sleeve×1
  • 61000072573Price
    hose sleeve - 1000072573×1
  • 71000081187Price
    non return valve - 1000081187×1
  • 81000019590Not stocked
    hose clamp×4
  • 91000094937Not stocked
    fuel line×0.5
  • 101000094937Not stocked
    fuel line×2.5
  • 111000085494Price
    allen screw M 5x12-8.8 A2C DIN912 - 1000085494×4
  • 121000082608Not stocked
    lock washer×4
  • 131000095342Price
    washer X-1000092302 - 1000095342×4
  • 141000095329Price
    plug housing - 1000095329×1
  • 151000168275Price
    SWITCH - 1000168275×1
  • 161000085684Price
    FUSE - 1000085684×1
  • 171000148077Not stocked
    retrofit kit fuelfillpump×1
