Neuson 8002RD

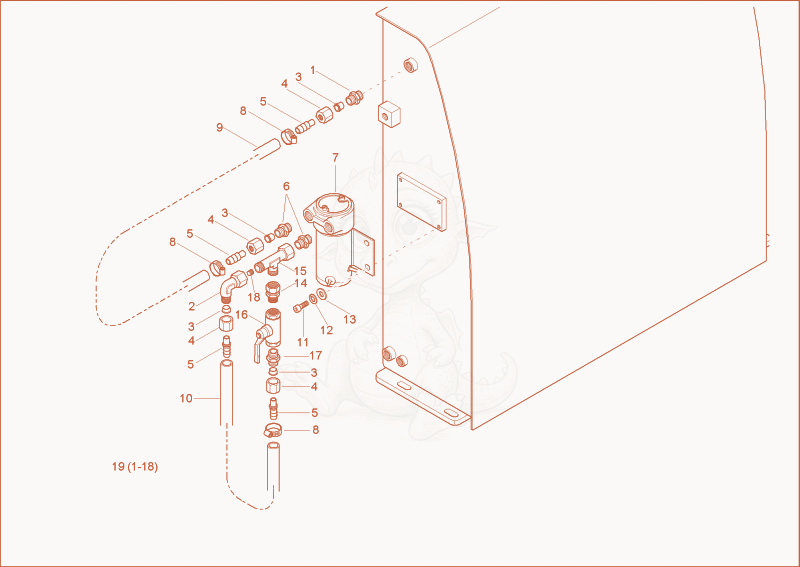

8002RD DIESEL TANK FILLING PUMP (OPTION) Diagram
- 11000021496Not stockedscrew joint×1
- 21000000573Not stockedscrew joint×1
- DPR12LX - 1000015484×4
- 41000015482Not stockedunion nut×4
- 51000016293Not stockedhose sleeve×4
- 61000015493Not stockedscrew joint×2
- 71000015244Not stockedfuel fill pump×1
- 81000019590Not stockedhose clamp×3
- 91000097915Not stockedhose×0.5
- 101000097915Not stockedhose×2
- allen screw M 5x12-8.8 A2C DIN912 - 1000085494×4
- 121000082608Not stockedlock washer×4
- washer X-1000092302 - 1000095342×4
- 141000015543Not stockedscrew joint×1
- EL12LOMDA3C - 1000015516×1
- 161000021495Not stockedball valve×1
- GE12LR3/8A3CX GEK. GEWINDE - 1000082875×1
- 181000082439Not stockedthread pin×1
- 191000012916Not stockedretrofit kit fuelfillpump×1
