Excavator 38Z3

38Z3 wiring harness seat console Diagram

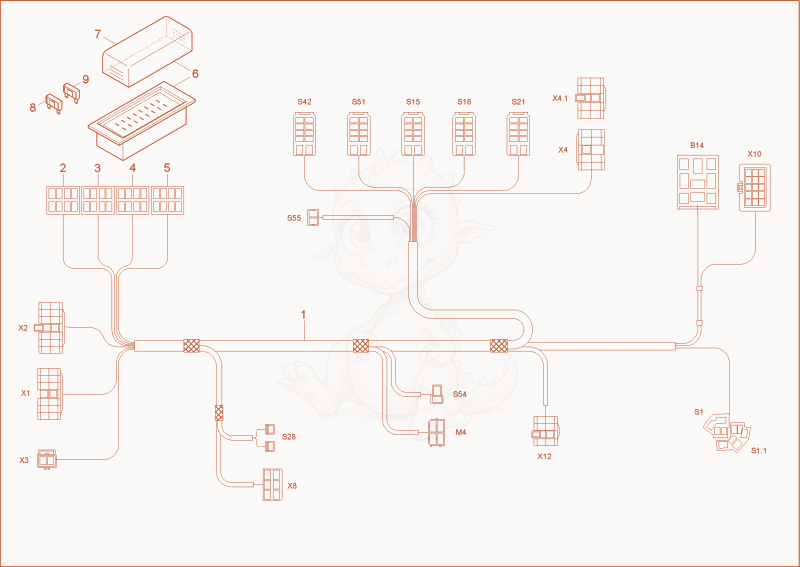

Exploded parts diagram of the wiring harness seat console of a Wacker Neuson 38Z3, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000146070Not stocked
wiring harness seat console×1
21000101620Price
Socket housing - 1000101620×1
31000101621Price
Socket housing - 1000101621×1
41000101622Price
Socket housing - 1000101622×1
51000101623Price
Socket housing - 1000101623×1
61000124067Price
FUSE BOX - 1000124067×1
71000124068Price
cover fuse box - 1000124068×1
81000085682Price
fuse - 1000085682×5
91000085683Price
FUSE - 1000085683×3
B141000082001Price
sockets - 1000082001×1
E151000027435Not stocked
insulating sleeve×1
M41000095325Price
plug sleeve housing - 1000095325×1
S11000027368Not stocked
central plug×1
S1.11000027386Price
PLUG - 1000027386×1
S151000124011Price
bushing housing - 1000124011×1
S161000124011Price
bushing housing - 1000124011×1
S211000124011Price
bushing housing - 1000124011×1
S281000027435Not stocked
insulating sleeve×2
S421000124011Price
bushing housing - 1000124011×1
S511000124011Price
bushing housing - 1000124011×1
S541000095323Price
plug sleeve housing - 1000095323×1
S551000095336Not stocked
plug sleeve housing×1
X11000100618Price
Pin housing - 1000100618×1
X101000104663Price
Pin housing - 1000104663×1
X121000094922Price
plug sleeve housing - 1000094922×1
X131000027435Not stocked
insulating sleeve×1
X141000027435Not stocked
insulating sleeve×1
X21000095331Price
plug sleeve housing - 1000095331×1
X31000103751Price
plug housing - 1000103751×1
X41000101653Price
plug sleeve housing - 1000101653×1
X4.11000095321Price
bushing housing - 1000095321×1
X81000095337Price
plug sleeve housing - 1000095337×1
