Excavator 38Z3

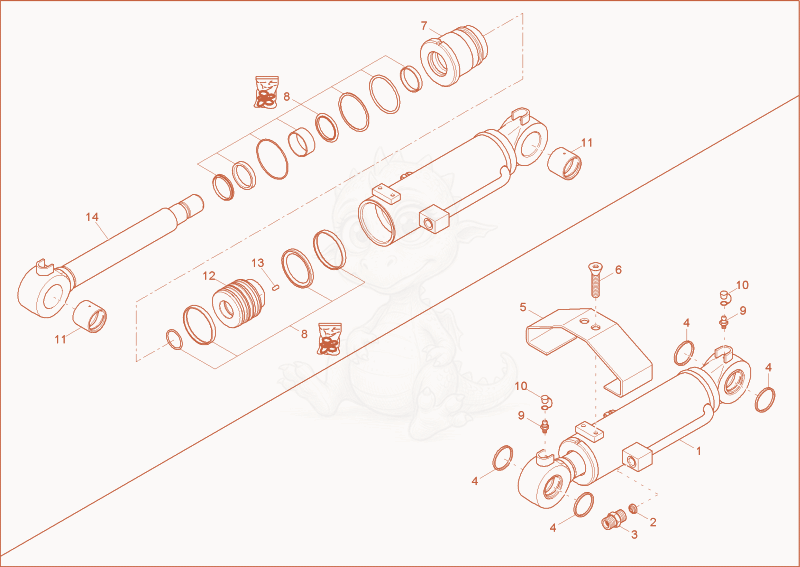

38Z3 blade cylinder Diagram
- 11000188895Not stockedblade cylinder×1
- HOSE BURST PROTECTION - 1000149075×1
- GE10LR1/2EDOMDA3C - 1000082844×2
- 41000015707Not stockedpin gasket×4
- Protectionplatedozbladeram 1000094092×1
- countersunk screw M10x16 - 1000082372×2
- Guidebushing 1000153725×1
- CYLINDER SEAL KIT - 1000153726×1
- grease nipple - 1000072959×2
- 101000015480Not stockedcap grease nipple×2
- 111000015619Not stockedsteel bushing×2
- 121000151802Not stockedpiston×1
- 131000015374Not stockedthread pin×1
- Pistonrod 1000182841×1
