Excavator 38Z3

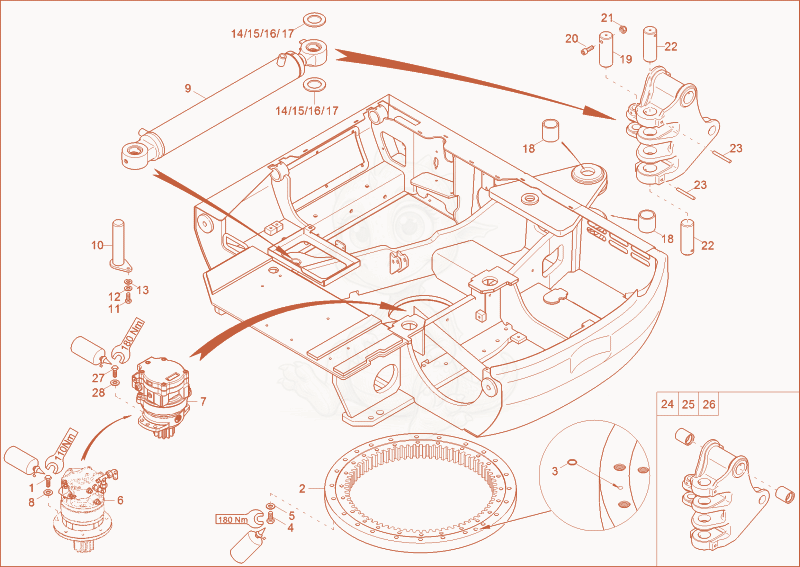

38Z3 chassis Diagram
- 11000015381Not stockedhex screw×10
- 21000070670Not stockedslewing ring×1
- O-RING - 1000095054×1
- HEX SCREW - 1000082301×24
- WASHER - 1000082635×24
- 61000070864Not stockedswivel drive×1
- Swiveldrive 1000125875×1
- 81000015450Not stockednorthlock disc×10
- 91000130068Not stockedboom offset cylinder×1
- 101000070635Not stockedpin×1
- 111000015343Not stockedhex screw×1
- 121000015437Not stockedlock washer×1
- 131000015431Not stockedwasher×1
- SHIM - 1000154275×1
- SHIM - 1000154276×1
- SHIM - 1000154278×1
- SHIM - 1000154280×1
- 181000139603Not stockedsteel bushing×2
- Pin 1000139679×1
- cheese head screw - 1000085467×1
- DIN985-M8-8-A2C - 1000015416×1
- Pin 1000296763×2
- cotter pin - 1000110018×2
- Swivelconsolepremounted 1000183123×1
- 251000183124Not stockedswivel console premounted×1
- swivel console premounted - 1000183125×1
- 271000020189Not stockedcheese head screw×6
- 281000015453Not stockednorthlock disc×6
