Excavator 3503

3503RD wiring harness armrest Diagram

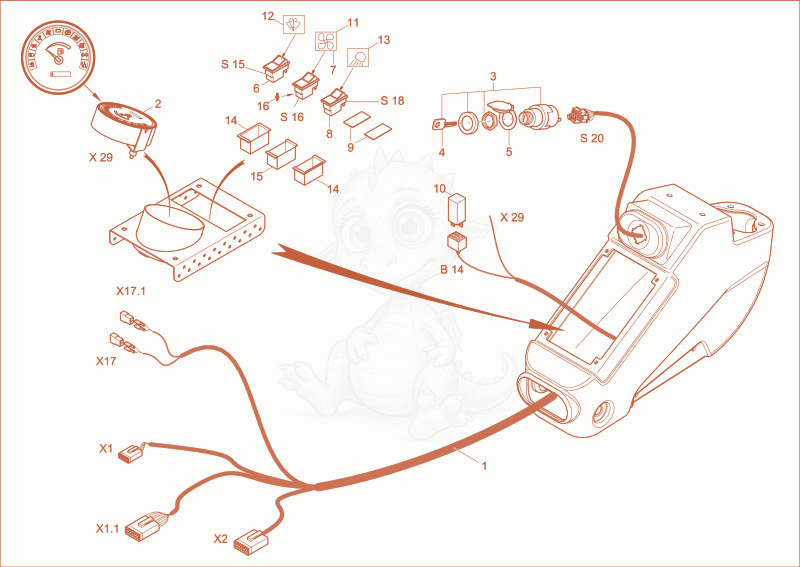

Exploded parts diagram of the wiring harness armrest of a Wacker Neuson 3503RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000137690Price
    WIRING HARNESS ARMREST - 1000137690×1
  • 21000164219Price
    INDICATOR INSTRUMENT - 1000164219×1
  • 31000184001Price
    Ignition lock-R-1000125516 - 1000184001×1
  • 41000184819Price
    EZ17 Key without cap - 1000184819×1
  • 51000081684Price
    cover ignition lock - 1000081684×1
  • 61000112860Price
    TILT SWITCH - 1000112860×1
  • 71000022662Price
    switch - 1000022662×1
  • 81000081956Price
    tilt switch - 1000081956×1
  • 91000027006Not stocked
    blind cover×2
  • 101000139287Price
    signal - 1000139287×1
  • 111000071881Not stocked
    symbol heater×1
  • 121000071882Not stocked
    symbol wiper×1
  • 131000081805Price
    SYMBOL WORKING LIGHT - 1000081805×1
  • 141000027168Not stocked
    switch frame×2
  • 151000027178Not stocked
    switch frame×3
  • 161000001518Price
    bulb - 1000001518×3
