Excavator 3503

3503RD oil sump Diagram

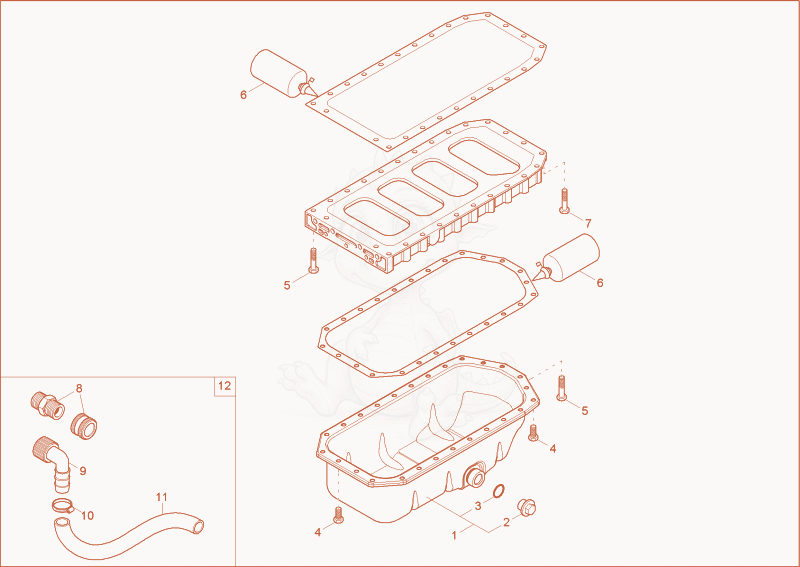

Exploded parts diagram of the oil sump of a Wacker Neuson 3503RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000073586Price
    Oilsump 1000073586×1
  • 21000002924Not stocked
    oildrain plug×1
  • 31000070003Price
    O-Ring - 1000070003×1
  • 41000085176Price
    HEX SCREW - 1000085176×4
  • 51000107492Price
    SCREW - 1000107492×24
  • 61000035794Not stocked
    sealing compound×1
  • 71000085196Price
    HEX SCREW - 1000085196×2
  • 81000034616Not stocked
    drain coupling×1
  • 91000098599Price
    Drain coupling - 1000098599×1
  • 101000019590Not stocked
    hose clamp×1
  • 111000116059Price
    synthetic hose - 1000116059×0.5
  • 121000128332Not stocked
    service valve motor oil×1
