Excavator 3503

3503RD KIT HYDR. BREAKER Diagram

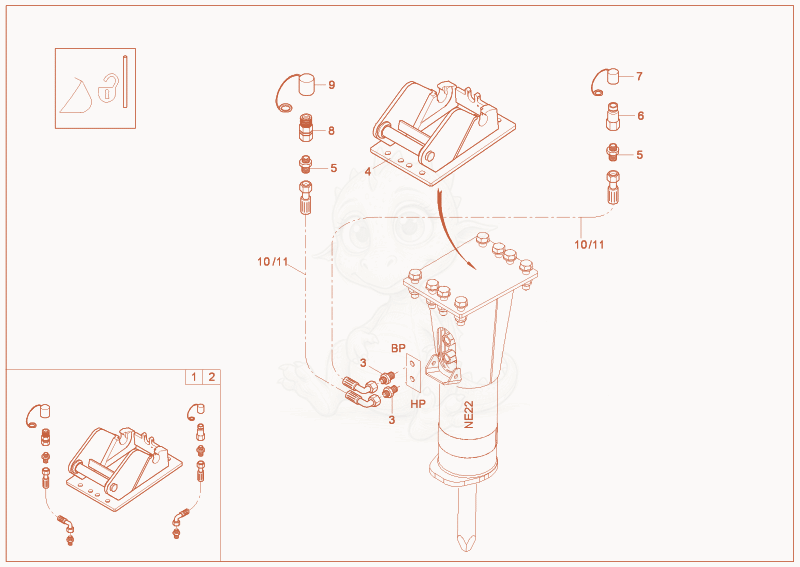

Exploded parts diagram of the KIT HYDR. BREAKER of a Wacker Neuson 3503RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000157337Not stocked
    KIT HYDR. BREAKER 35-3703,NE22×1
  • 21000157338Not stocked
    KIT HYDR. BREAKER 35-3703,NE22×1
  • 31000161373Not stocked
    screw joint×2
  • 41000153415Price
    Hammersupport 1000153415×1
  • 51000015494Not stocked
    screw joint×2
  • 61000109377Not stocked
    quick lock coupling×1
  • 71000109416Price
    Protection cap - 1000109416×1
  • 81000109378Not stocked
    quick lock coupling×1
  • 91000109417Price
    Protection cap - 1000109417×1
  • 101000156623Price
    SLHYDR 2SC 13 PN15 90 PN15 0 L1400 F0 - 1000156623×2
  • 111000156624Not stocked
    Hose×2
