WN Dumper 10001

10001 relay case Diagram

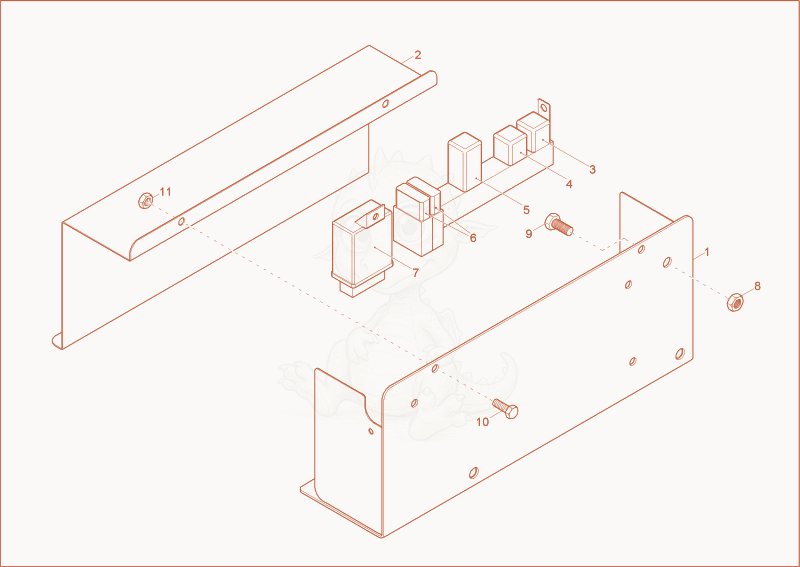

Exploded parts diagram of the relay case of a Wacker Neuson 10001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000128008Not stocked
    relay case×1
  • 21000075041Not stocked
    cover relay box×1
  • 31000081794Price
    RELAY - 1000081794×1
  • 41000001541Not stocked
    relay×1
  • 51000001866Not stocked
    step relay×1
  • 61000015298Price
    FUSE - 1000015298×2
  • 71000075057Not stocked
    diode box×1
  • 81000015416Price
    DIN985-M8-8-A2C - 1000015416×2
  • 91000019136Not stocked
    hex screw×2
  • 101000085382Price
    HEX SCREW - 1000085382×3
  • 111000085588Price
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×3
